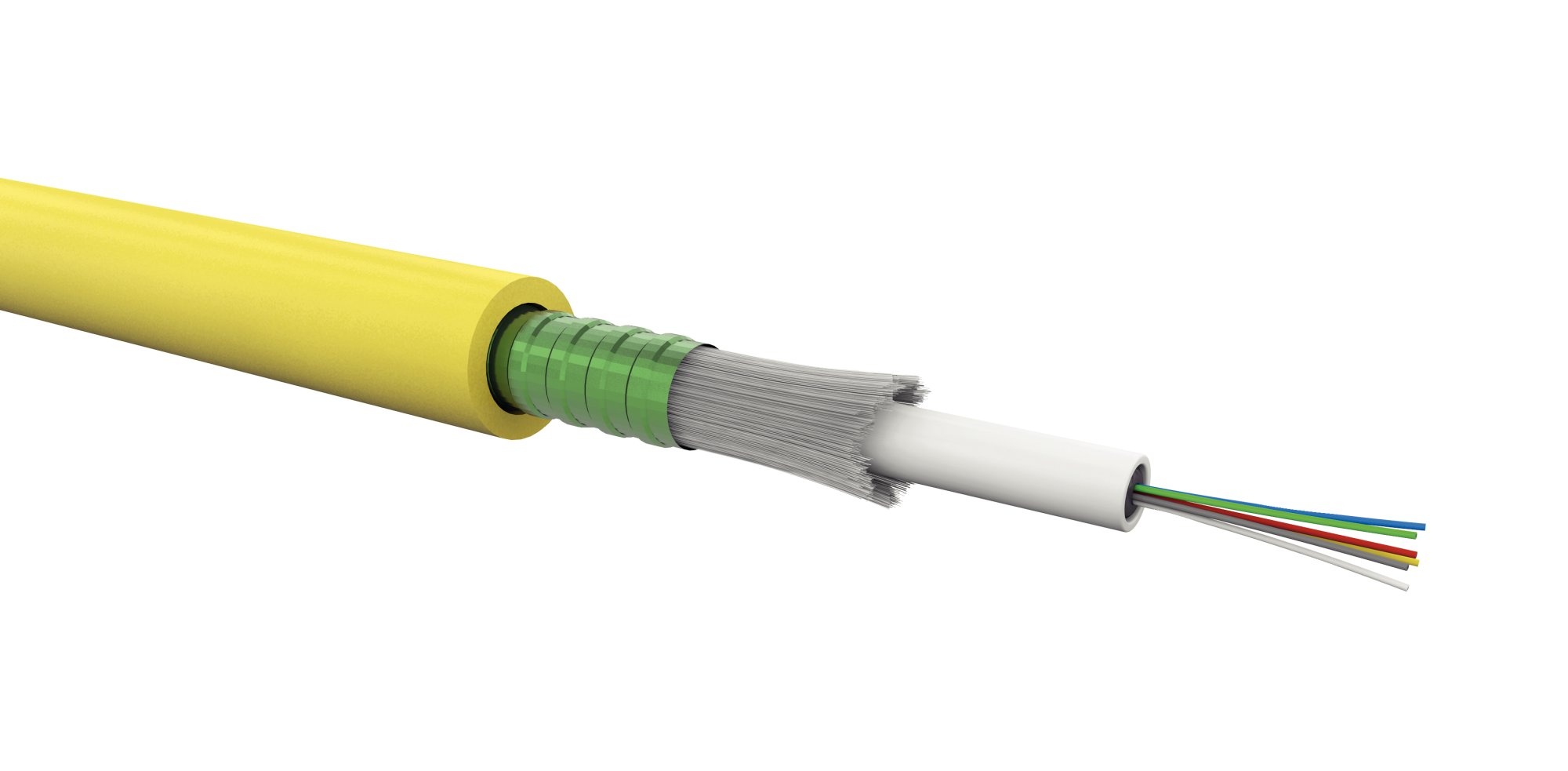

GGM FO12B9BCLST
12F OS2 indoor/outdoor loose tube cable + CST with glass yarns, LSZH B2ca jacket
Read more
| Cable type | Loose tube 250 µm |
|---|---|
| Installation | indoor/outdoor |
| Watertightness | Dry & longitudinal |
| Fiber color code | IEC 60304 |
| Jacket | LSOH |
| Euroclass | B2ca-s1a, d0, a1 |
| Bandwidth @1300 nm | N/A |
| Bandwidth at 1310/1550 nm | Os2 ≥ 10,000 mhz/km |
| Bandwidth @850 nm | N/A |
| Bandwidth at 850 nm dmd | N/A |
| Bandwidth at 850 nm emb | N/A |
| Bending radius - minimum static (mm) | 80 |
| Bending radius - minimum dynamic (mm) | 160 |
| Cable weight (kg/km) | 108 |
| Central strength member | No |
| Packaging | 2000m |
| Crush resistance (N) | 2000 |
| Diameter (mm) | 8 |
| Fire behaviour | EN 13501-6 : B2ca, s1a, d1, a1 ; EN 50575, EN 50399, EN 60332-1-2 |
| Marking | [Longueur] [GIGAMEDIA] [GGM FO12B9BCLST] [12FO 9/125 OS2 CLT CST LSZH] [B2ca s1a d1 a1] [CLT FO CABLE FCTCB012V] [Semaine/Année] [N°Lot] |
| Attenuation | At 1310 nm: os2 ≤ 0.36 db/km |
| Fiber amount | 12 |
| Strength member | : Corrugated steel tape + glass yarns protection against rodents |
| Jacket type | LSZH-FR |
| Operating temperature | From -40°C to +70°C |
| Tensile strength (n) | 1000 |
| Operating environment | Indoor / Outdoor |
| Fibre count | 12 |
| Structure | Central tube |
| Fibre optic category | Single mode 9/125 |
| Category | OS2 |
| Strain relief | No |
| Rodent protected | Yes |
| Armouring/reinforcement | Lap-screen |
| Material armouring | Steel |
| Specification material outer sheath | Other |
| Jacket colour | Yellow |
| Longitudinal water blocking cable | Yes |
| Radial water blocking cable | Yes |
| Metal free cable | No |
| Cable geometry | Round |
| Flame retardant according to IEC 60332-1-2 | Yes |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | Yes |
| Flame retardant according to IEC 60332-3-24 (Cat C) | Yes |
| Low smoke according to EN IEC 61034-2 | Yes |
| Halogen free according to EN IEC 60754-1 | Yes |
| Halogen free according to EN IEC 60754-2 | Yes |
| Reaction-to-fire according to EN 13501-6 | Class : B2ca |
| Oil resistant | No |
| Resistant to chemicals | No |
| UV resistant | Yes |
| Cable OD | 8 mm |
| Min. permitted bending radius, stationary application/permanent installation | 160 mm |
| Max. tensile strength during installation | 10 kN |
| Suitable for underground installation | Yes |
| Blowed cable | No |
| Weight | 108 kg/km |
