| Produit | |
|---|---|
| Stranded Core | Bare copper |
| Shield | Braid cca - 85% |
| Packaging | On cut |
| Outer sheath diameter (mm) | 6.1 |
| Insulation diameter (mm) | 3.7 |
| Impedance (ohms) | 75 |
| Insulation Material | Polyethylene |
| NVP (%) | 66 |
| Bending radius (mm) | 50 |
| Conductors size | |
| Jacket type | PVC |
| Paired co-axial cable | No |
| 2 core co-axial cable (twinax) | No |
| Inner conductor diameter | 1.4 mm |
| Inner conductor material | Copper |
| Inner conductor surface | Bare |
| Conductor construction | Class 2 = stranded |
| Outer conductor material | Other |
| Outer conductor surface | Copper-plated |
| Outer conductor type | Braiding |
| Dielectric type | Solid PE (HD-PE) |
| Armouring/reinforcement | None |
| Rodent protected | No |
| Specification material outer sheath | Polyethylene (PE) |
| Jacket colour | Black |
| Flame retardant according to IEC 60332-1-2 | No |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) | No |
| Flame retardant according to IEC 60332-3-23 (Cat B) | No |
| Flame retardant according to IEC 60332-3-24 (Cat C) | No |
| Flame retardant according to IEC 60332-3-25 (Cat D) | No |
| Low smoke according to EN IEC 61034-2 | No |
| Halogen free according to EN IEC 60754-1 | No |
| Halogen free according to EN IEC 60754-2 | No |
| Halogen free according to EN IEC 60754-3 | No |
| Reaction-to-fire according to EN 13501-6 | Class : Eca |
| UV resistant | No |
| Impedance | 75 Ohm |
| Cable OD | 6.1 mm |
| Suitable for underground installation | No |
| Approved type of underground installation | Underground installation tube |
| Weight | 40.6 kg/km |
Product information
For further information
Over 7000
part numbers
Exclusively distributed
by Rexel
Over 100 employees
worldwide
30 years of expertise
at your service
Tailor-made services
for your projects
GGM FCSKX6NST

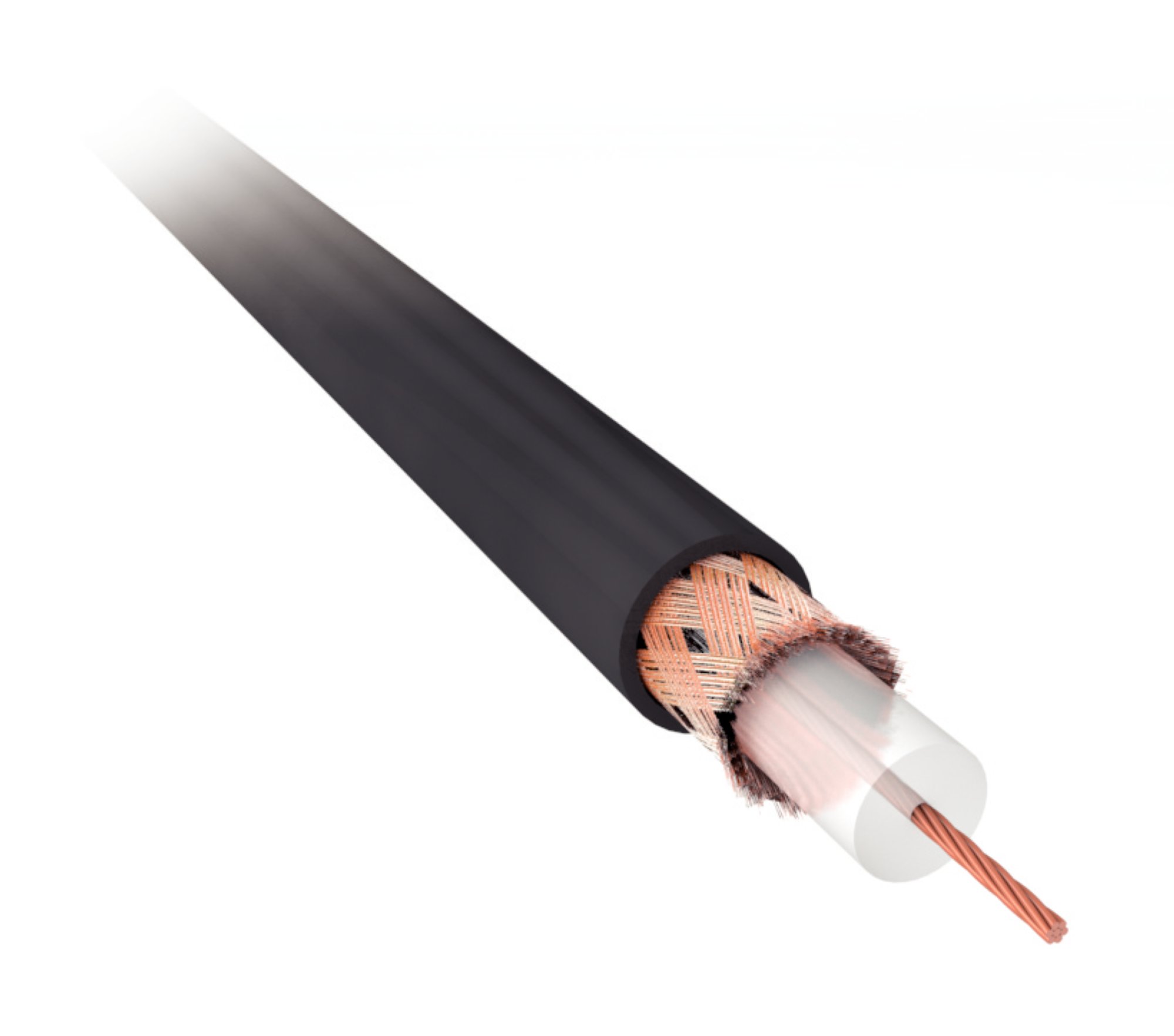

COAXIAL KX6 75 OHMS BLACK TGL
