GGM F144R12G6A2ST

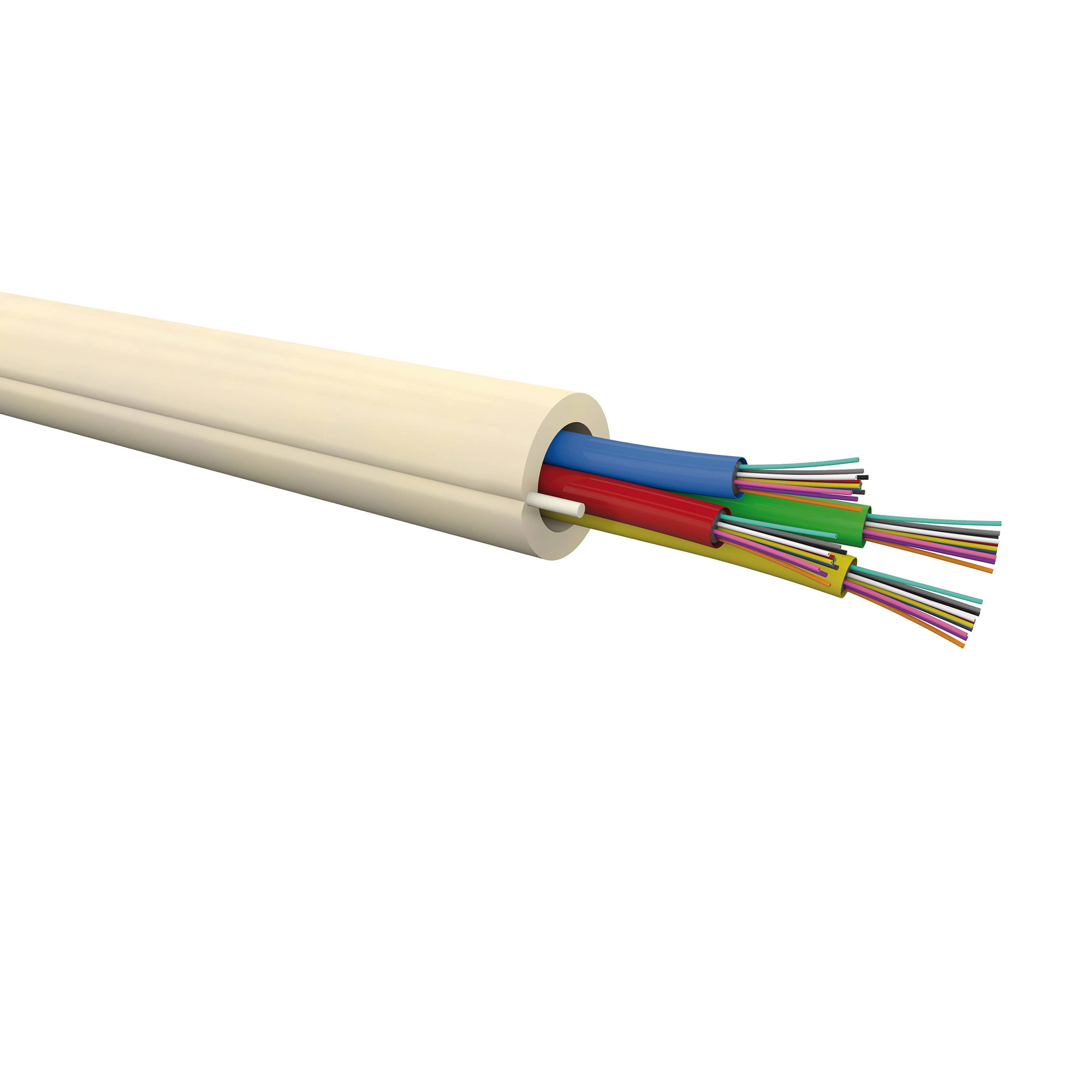

144FO FTTH riser G657A2 cable with 12 fibers per gel-free micromodule LSZH DCA

Perfect for use in riser columns in collective residential environments. The FRP reinforcement in the LSZH sheath provide additional rigidity. Access to the fibres is easy and the function of opening a cable run reduces operational costs linked to connections in floor boxes (passing cables). The micromodular technology offers the possibility of opening the tubes / modules and accessing the fibres without tools. Modular with 6 fibres per tube.

AVCP System	AVCP3
Conformity	IEC 60793-2-50 type B6
Euroclass short	Dca
Installation temperature	From -5°C to +60°C
Operating temperature	From -10°C to +60°C
Weight	70 (12 in) to 130 kg (144 in)
Jacket	LSFROH
Storage temperature	From -40°C to +70°C
Fiber type	Singlemode G657A2
Colour	Ivory
Marking	[Length] [GIGAMEDIA 144FO G657A2 12F/T EASY MODULE LSOH Dca s2 d0 a1 FOC MOD12] [Week/Year]
Modularity	12 fibers per module
Tensile strength (n)	600
Fibre count	144
Structure	Loose tube
Fibre optic category	Single mode 9/125
Category	Other
Strain relief	Yes
Rodent protected	No
Armouring/reinforcement	Other
Material armouring	Other
Jacket type	Other
Specification material outer sheath	Other
Jacket colour	White
Longitudinal water blocking cable	No
Radial water blocking cable	Yes
Metal free cable	Yes
Cable geometry	Round
Flame retardant according to IEC 60332-1-2	Yes
Flame retardant according to IEC 60332-3-21 (Cat A F/R)	No
Low smoke according to EN IEC 61034-2	Yes
Reaction-to-fire according to EN 13501-6	Class : Dca
Oil resistant	No
Resistant to chemicals	No
UV resistant	Yes
Cable OD	12 mm
Min. permitted bending radius, stationary application/permanent installation	180 mm
Max. tensile strength during installation	6 kN
Suitable for underground installation	No
Blowed cable	No
