GGM F12R6G6A2ST

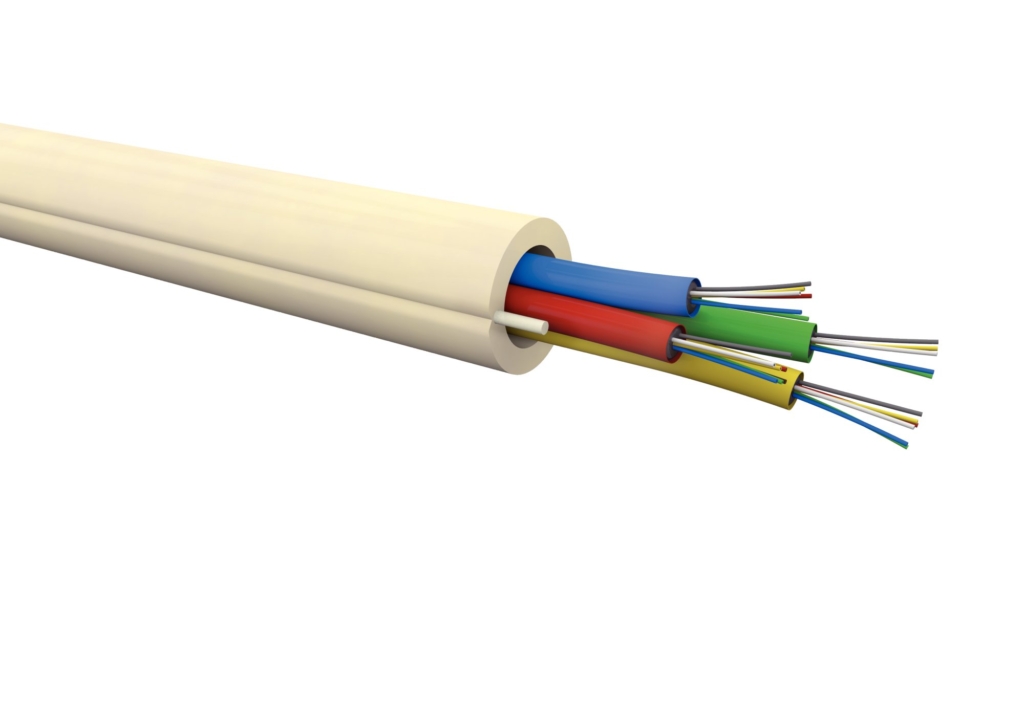

12FO FTTH riser G657A2 cable with 6 fibers per gel-free micromodule LSZH DCA
This riser cable is the ideal solution for installations in residential environments. The FRP reinforcement in the LSZH sheath provides additional rigidity Access to the fibre is facilitated and the full cable opening function reduces operational costs linked to connecting distribution boxes (transiting cables) The micro-module technology offers the possibility of opening the tubes / modules to gain access to the fibres without tools. Modular with 6 fibres per tube.
Read more
This riser cable is the ideal solution for installations in residential environments. The FRP reinforcement in the
LSZH sheath provides additional rigidity
Access to the fibre is facilitated
and the full cable opening function reduces
operational costs linked to connecting distribution boxes
(transiting cables)
The micro-module technology offers the possibility of opening the tubes / modules to gain access to the fibres without tools.
Modular with 6 fibres per tube.
| AVCP System | AVCP3 |
|---|---|
| Conformity | IEC 60793-2-50 type B6 |
| Euroclass short | Dca |
| Installation temperature | From -5°C to +60°C |
| Operating temperature | From -10°C to +60°C |
| Weight | 70 (12 in) to 130 kg (144 in) |
| Jacket | LSFROH |
| Storage temperature | From -40°C to +70°C |
| Fiber type | Singlemode G657A2 |
| Colour | Ivory |
| Marking | [Length] [GIGAMEDIA 12FO G657A2 6F/T LSOH Dca s2 d0 a1 FOC MOD6A] [Week/Year] |
| Modularity | 6 fibers per module |
| Tensile strength (n) | 400 |
ETIM features
| Number of fibres | 12 |
|---|---|
| Type of tube | Other |
| Number of fibres per tube | 6 |
| Fibre type | Single mode 9/125 |
| Category | Other |
| With strain relief | No |
| With rodent protection | No |
| Armouring/reinforcement | Other |
| Material armouring | Other |
| Material outer sheath | Other |
| Specification material outer sheath | Other |
| Colour outer sheath | White |
| Longitudinal water blocking cable | No |
| Radial water blocking cable | No |
| Cable metal free | Yes |
| Cable geometry | Round |
| Flame retardant according to IEC 60332-1-2 | Yes |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | No |
| Low smoke according to EN IEC 61034-2 | Yes |
| Reaction-to-fire according to EN 13501-6 | Class : Dca |
| Reaction-to-fire according to EN 13501-6 | Smoke production : s2 |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : d0 |
| Reaction-to-fire according to EN 13501-6 | Acidity : a1 |
| Oil resistant according to EN IEC 60811-404 | No |
| Resistant to chemicals | No |
| Outer diameter approximate | 8 mm |
| Min. permitted bending radius, stationary application/permanent installation | 96 mm |
| Max. tensile strength during installation | 1600 kN |
| Suitable for underground installation | No |
| Blow in | Yes |
