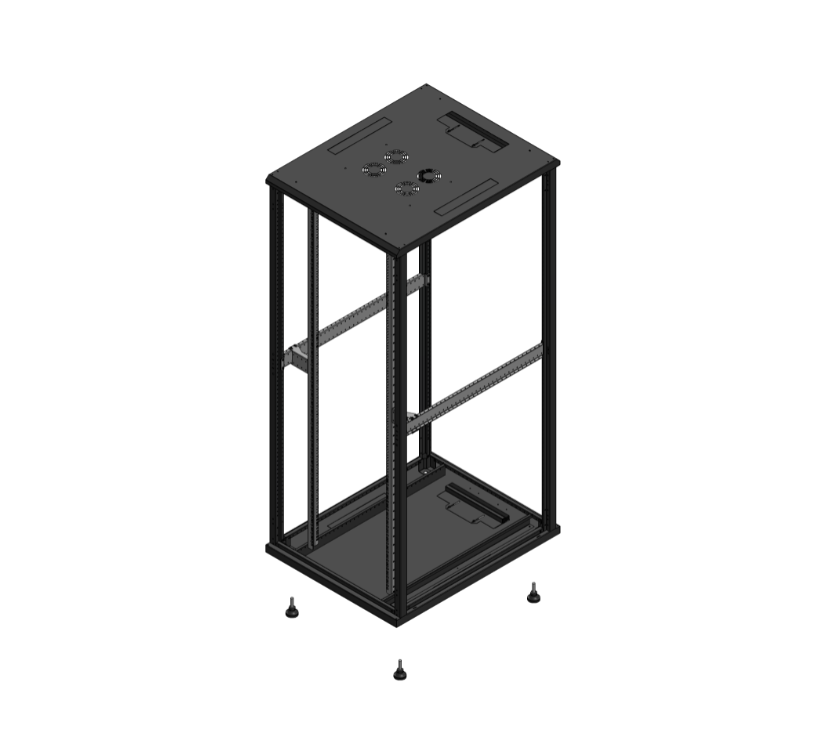

FRAME S70 42U 800X1000 black

This product offers an excellent quality/price ratio, designed to offer a maximum of functionalities and ease in the implementation of your cabling.

Type	Cabling
Frame	Steel, mechanically screwed (To be disassembled)
Mounting profiles	Two 19″ mounting profiles adjustable in depth (zinc plated), “U” markings, 9.5 x 9.5 mm perforations
Ground contact	Adjustable feet (over 4 cm)
RAL	9005
Protection (IP)	0
Load capacity	900
Earthing kit included	No
Base	Full, with rear cable entry system and sides pre-cut for cable entry
Capacity (U)	42
Depth (mm)	1000
Height (mm)	2033
Width (mm)	800
Roof	With ventilation holes, rear cable entry system and sides pre-cut for cable entry
Mounting level	Front side
Type of profile rail	L-shaped
Type of ventilation	Passive
Width	800 mm
Height	2033 mm
Depth	1000 mm
Modular spacing	482.6 mm (19 inch)
Height (U)	42
Max. load capacity	900 kg
With roof plate	Yes
With earthing	No
With front door	No
With rear door	No
With glazed door	No
With sidewall	No
With base	No
With vertical cable management	No
Material	Steel
Surface finishing	Powder coating
Colour	Black
Model	With permanent frame
Demountable	Yes
IP protection	IP00
