GGM DP4CC2M

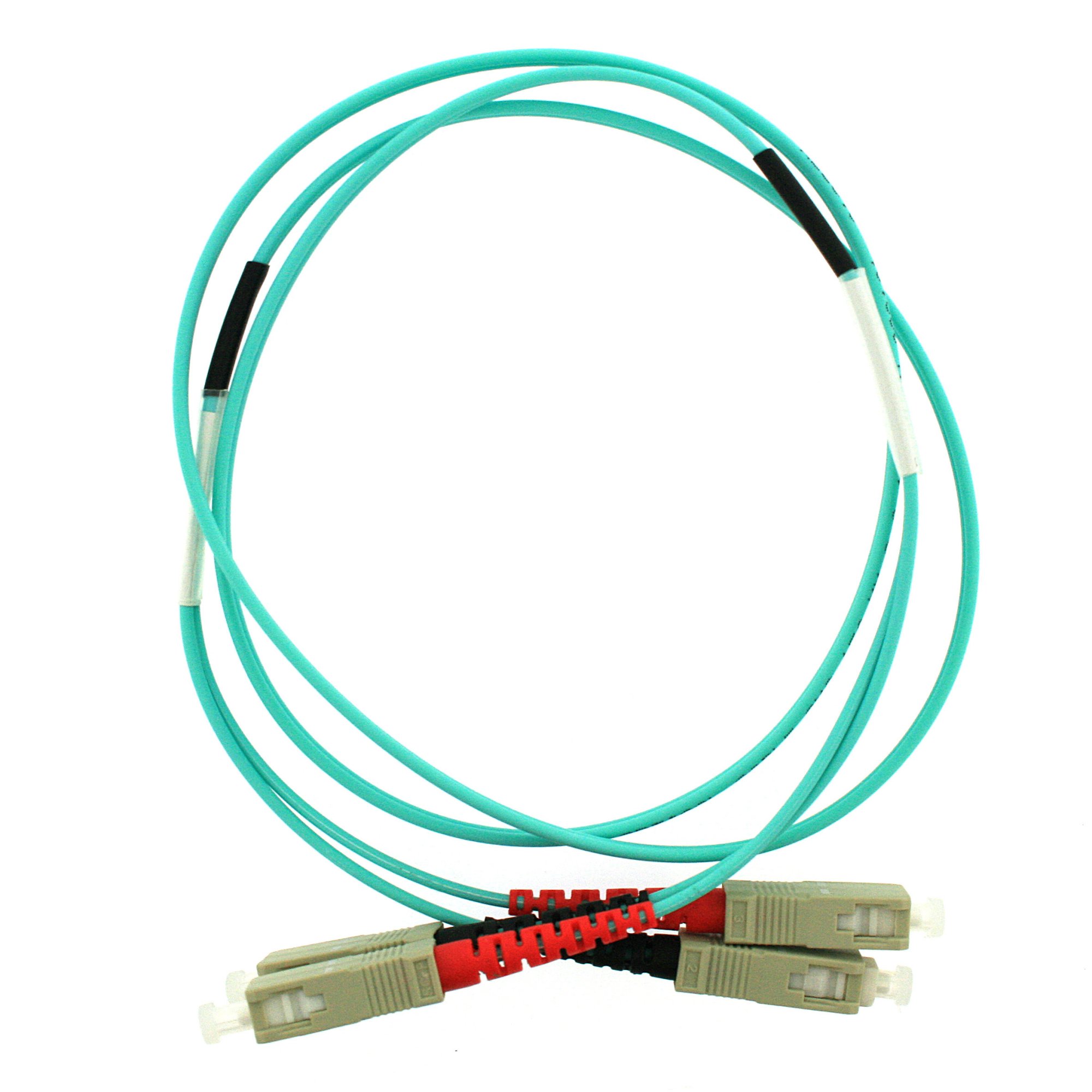

Multimode OM3 duplex aqua patchcord, SC/PC to SC/PC 2M
Duplex fibre optic patch cords OM3 50/125 µm.
Read more
Duplex fibre optic patch cords OM3 50/125 µm.
| Cord type | Duplex |
|---|---|
| Ferule | High precision ceramic (ZrO2) |
| Sheath type | LSZH |
| Reinforcement | Aramid yarns |
| Cable diameter | 2x 3 mm (multimode), 2x 2.80 mm (singlemode), 2x 1.80 mm (LC to LC) |
| Conformity | EIA/TIA 568, ISO 11801, EN50173, IEC 61754, IEC 61300 |
| Packaging | Each |
| Other lengths and configurations | On demand |
| Il/rl test report | Supplied with each piece |
| Operating temperature | From - 5°c to + 60°c |
| Mating cycles | 1000 (0.2 db change) |
| Strength member | : Aramid yarns |
| Fibre optic category | Multi mode 50/125 |
| Category | OM3 |
| Fibre count | 2 |
| Outer diameter sheath single fibre | 2 mm |
| Shield type | Duplex |
| Length | 2 m |
| Connector A | SC duplex |
| Connector B | SC duplex |
| APC-version connection 1 | No |
| APC-version connection 2 | No |
| Jacket colour | Turquoise |
| Boot | Put-on |
| Halogen free according to EN IEC 60754-1 | Yes |
