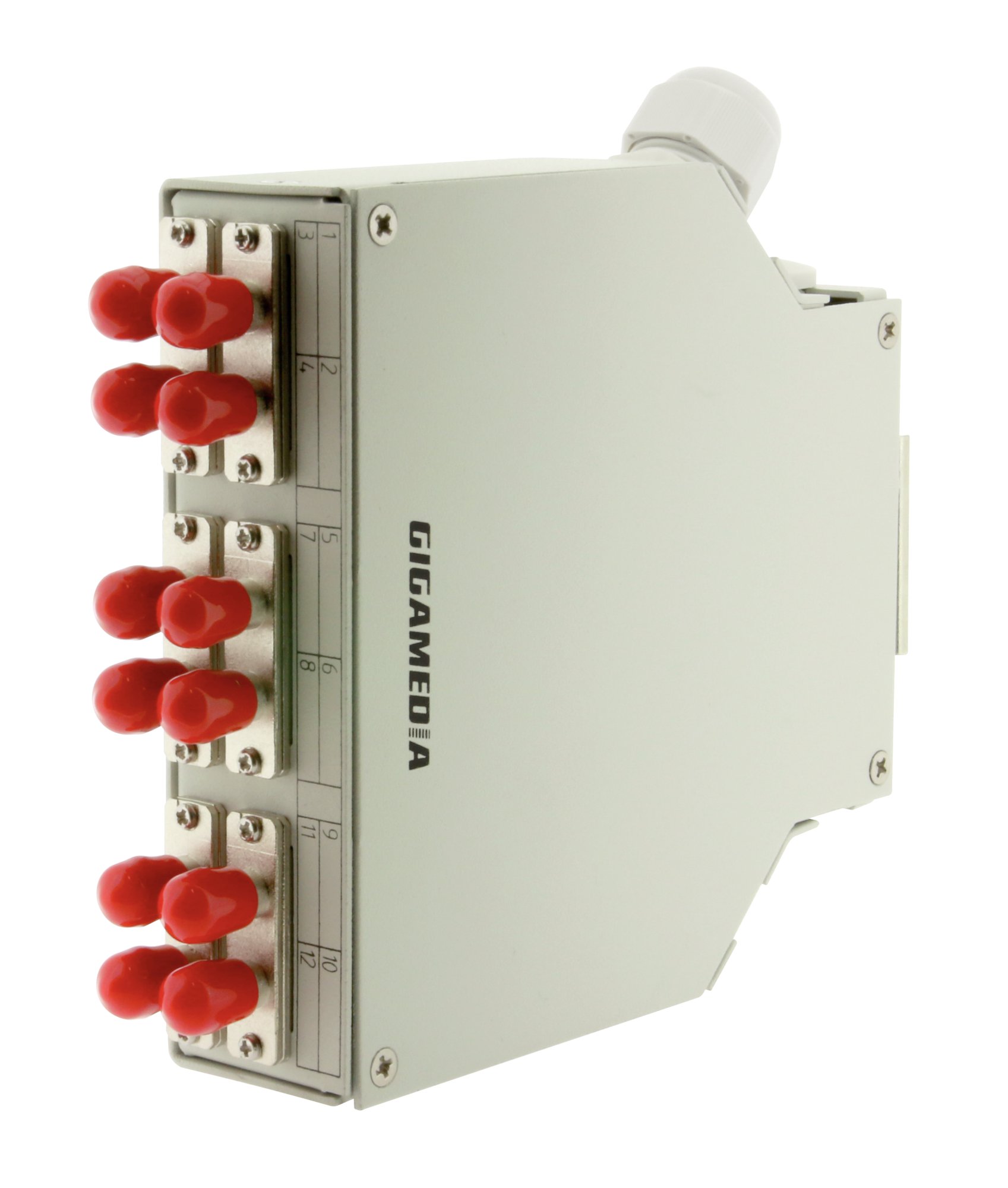

DIN rail optical box loaded with 6 SC/ST dpx multimode grey adapters +splicetray

With compact design and easy installation, the GIGAMEDIA DINFO allows up to 12 fibres to be connected. It also allows the mixing of optical and electrical resources inside industrial panels.

Protection (IP)	IP20
DIN Rail mounting	Rear or aside
Cable entries	X 2 AT the rear (cable gland pg 11)
Fusion splice holder	IntegrATed
Operating temperature	From -40°C to +70°C
Dimensions (mm)	35 x 125 x 133
Weight (kg)	0.65
Colour	Grey
Supplied accessories	2 PG 11 cable glands
Other connectors	On demand
Unloaded box	For 6 SC duplex
Color	Grey
Pre-loaded box	6 SC to ST duplex multimode adapters
Surface mounted	Yes
Flush mounted installation/build in installation	Yes
Duct installation	No
Floor box/Sub floor mounted	No
Connection method	DIN rail (top hat rail)
Connector type	ST/SC-Duplex
Connector housing	Other
Material of connector housing	Plastic
Loaded with adapters	Yes
Max number of couplers	6
Adapted type of fibre	Multi mode
Sleeve material	Metal
Labeling zone	Yes
Separate strain relief	Yes
Dust cover	Yes
IP protection	IP20
Ambient temperature	-40 - 70
Mechanical coding	No
Colour coded	No
Width	35 mm
Height	125 mm
Depth	133 mm
