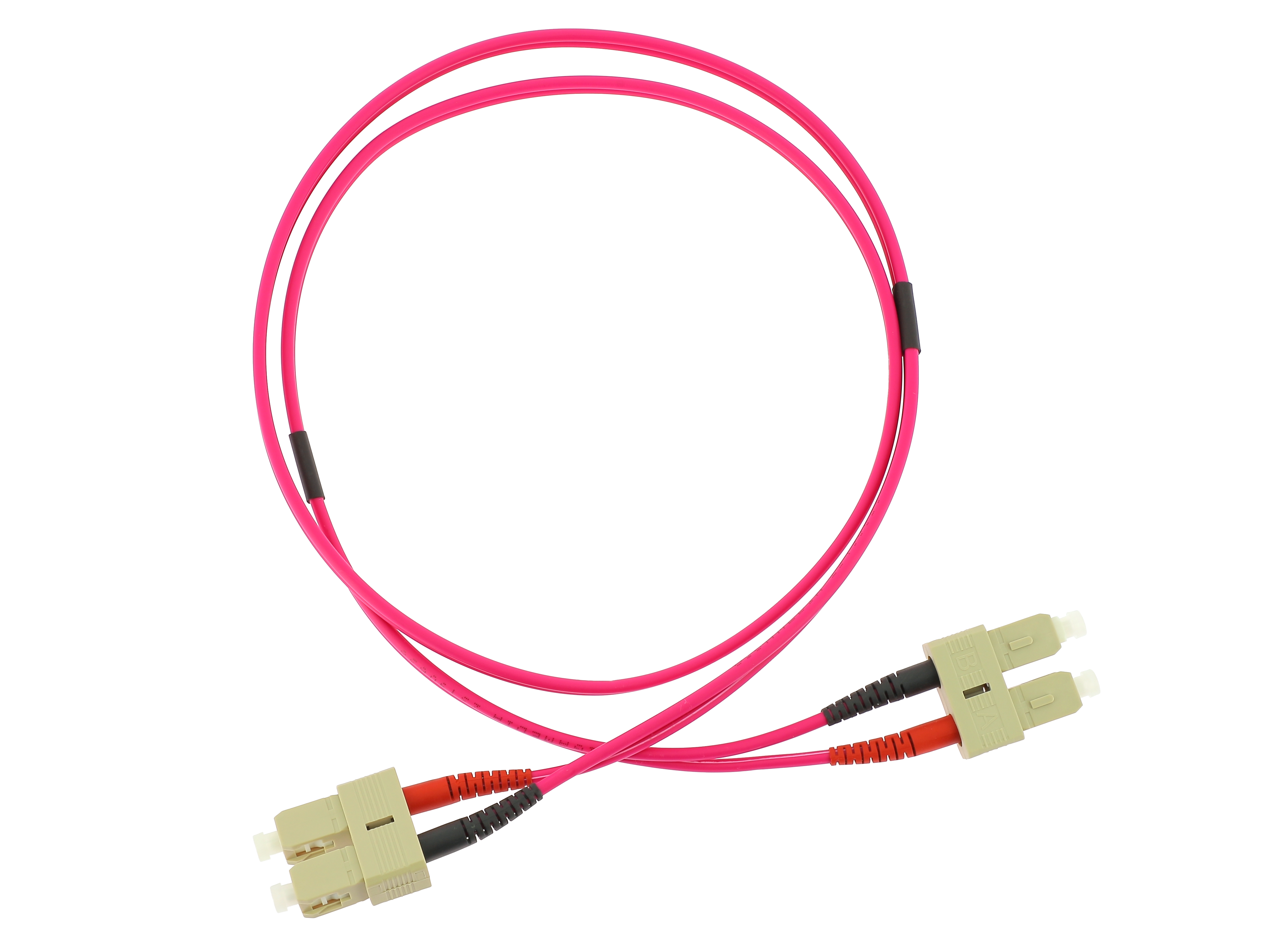

GGM D5MCC3M
SC/SC OM4 50/125 µm duplex 3 m patchcord, LSZH Ø3 mm jacket, erika violet colour
Duplex fibre optic patch cords OM4 50/125 µm, turquoise sheath
Read more
Duplex fibre optic patch cords OM4 50/125 µm, turquoise sheath
| Cord type | Duplex |
|---|---|
| Ferule | High precision ceramic (ZrO2) |
| Sheath type | LSZH |
| Reinforcement | Aramid yarns |
| Cable diameter | 2x 3 mm (multimode), 2x 2.80 mm (singlemode), 2x 1.80 mm (LC to LC) |
| Conformity | EIA/TIA 568, ISO 11801, EN50173, IEC 61754, IEC 61300 |
| Packaging | Each |
| Other lengths and configurations | On demand |
| Il/rl test report | Supplied with each piece |
| Operating temperature | From - 5°c to + 60°c |
| Mating cycles | 1000 (0,2 dB variation) |
| Strength member | : Aramid yarns |
| Fibre optic category | Multi mode 50/125 |
| Category | OM4 |
| Fibre count | 2 |
| Outer diameter sheath single fibre | 3 mm |
| Shield type | Duplex |
| Length | 2 m |
| Connector A | SC duplex |
| Connector B | SC duplex |
| APC-version connection 1 | No |
| APC-version connection 2 | No |
| Jacket colour | Purple |
| Boot | Put-on |
| Halogen free according to EN IEC 60754-1 | Yes |
LC/LC OM4 50/125µm duplex 1 m patchcord, LSZH Ø1,8mm jacket, erika violet colour
GGM D5MLCLC1M
LC/LC OM4 50/125µm duplex 2 m patchcord, LSZH Ø1,8mm jacket, erika violet colour
GGM D5MLCLC2M
LC/LC OM4 50/125µm duplex 3 m patchcord, LSZH Ø1,8mm jacket, erika violet colour
GGM D5MLCLC3M
LC/LC OM4 50/125µm duplex 3 m patchcord, LSZH Ø1,8mm jacket, erika violet colour
GGM D5MLCLC5M
LC/LC OM4 50/125µm duplex 7 m patchcord, LSZH Ø1,8mm jacket, erika violet colour
GGM D5MLCLC7M
LC/LC OM4 50/125µm duplex 8 m patchcord, LSZH Ø1,8mm jacket, erika violet colour
GGM D5MLCLC8M
LC/LC OM4 50/125µm duplex 10m patchcord, LSZH Ø1,8mm jacket, erika violet colour
GGM D5MLCLC10M
LC/LC OM4 50/125µm duplex 12m patchcord, LSZH Ø1,8mm jacket, erika violet colour
GGM D5MLCLC12M
LC/LC OM4 50/125µm duplex 15m patchcord, LSZH Ø1,8mm jacket, erika violet colour
GGM D5MLCLC15M
LC/LC OM4 50/125µm duplex 20m patchcord, LSZH Ø1,8mm jacket, erika violet colour
GGM D5MLCLC20M
LC/LC OM4 50/125µm duplex 25m patchcord, LSZH Ø1,8mm jacket, erika violet colour
GGM D5MLCLC25M
Uniboot reversible LC/LC duplex OM4 1 m patchcord, erika violet colour, Ø 2 mm
GGM DUR5MLCLC1M
Uniboot reversible LC/LC duplex OM4 2 m patchcord, erika violet colour, Ø 2 mm
GGM DUR5MLCLC2M
Uniboot reversible LC/LC duplex OM4 3 m patchcord, erika violet colour, Ø 2 mm
GGM DUR5MLCLC3M
Uniboot reversible LC/LC duplex OM4 5 m patchcord, erika violet colour, Ø 2 mm
GGM DUR5MLCLC5M
Uniboot reversible LC/LC duplex OM4 7 m patchcord, erika violet colour, Ø 2 mm
GGM DUR5MLCLC7M
Uniboot reversible LC/LC duplex OM4 10 m patchcord, erika violet colour, Ø 2 mm
GGM DUR5MLCLC10M
Uniboot reversible LC/LC duplex OM4 15 m patchcord, erika violet colour, Ø 2 mm
GGM DUR5MLCLC15M
Uniboot reversible LC/LC duplex OM4 20 m patchcord, erika violet colour, Ø 2 mm
GGM DUR5MLCLC20M
LC/LC OM4 50/125 µm duplex 1 m patchcord with short boot, LSZH 1,8 mm, violet
GGM D5MLCLC1MSB
LC/LC OM4 50/125 µm duplex 2 m patchcord with short boot, LSZH 1,8 mm, violet
GGM D5MLCLC2MSB
LC/LC OM4 50/125 µm duplex 3 m patchcord with short boot, LSZH 1,8 mm, violet
GGM D5MLCLC3MSB
LC/LC OM4 50/125 µm duplex 5 m patchcord with short boot, LSZH 1,8 mm, violet
GGM D5MLCLC5MSB
LC/LC OM4 50/125 µm duplex 10 m patchcord with short boot, LSZH 1,8 mm, violet
GGM D5MLCLC10MSB
LC/SC OM4 50/125 µm duplex 1 m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCLC1M
LC/SC OM4 50/125 µm duplex 2 m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCLC2M
LC/SC OM4 50/125 µm duplex 3 m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCLC3M
LC/SC OM4 50/125 µm duplex 3 m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCLC5M
LC/SC OM4 50/125 µm duplex 7 m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCLC7M
LC/SC OM4 50/125 µm duplex 8 m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCLC8M
LC/SC OM4 50/125 µm duplex 10m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCLC10M
LC/SC OM4 50/125 µm duplex 12m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCLC12M
LC/SC OM4 50/125 µm duplex 20m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCLC20M
LC/SC OM4 50/125 µm duplex 25m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCLC25M
SC/SC OM4 50/125 µm duplex 1 m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCC1M
SC/SC OM4 50/125 µm duplex 2 m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCC2M
SC/SC OM4 50/125 µm duplex 3 m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCC5M
SC/SC OM4 50/125 µm duplex 7 m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCC7M
SC/SC OM4 50/125 µm duplex 8 m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCC8M
SC/SC OM4 50/125 µm duplex 10m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCC10M
SC/SC OM4 50/125 µm duplex 20m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCC20M
SC/SC OM4 50/125 µm duplex 25m patchcord, LSZH Ø3 mm jacket, erika violet colour
GGM D5MCC25M
