GGM CONVMPSC

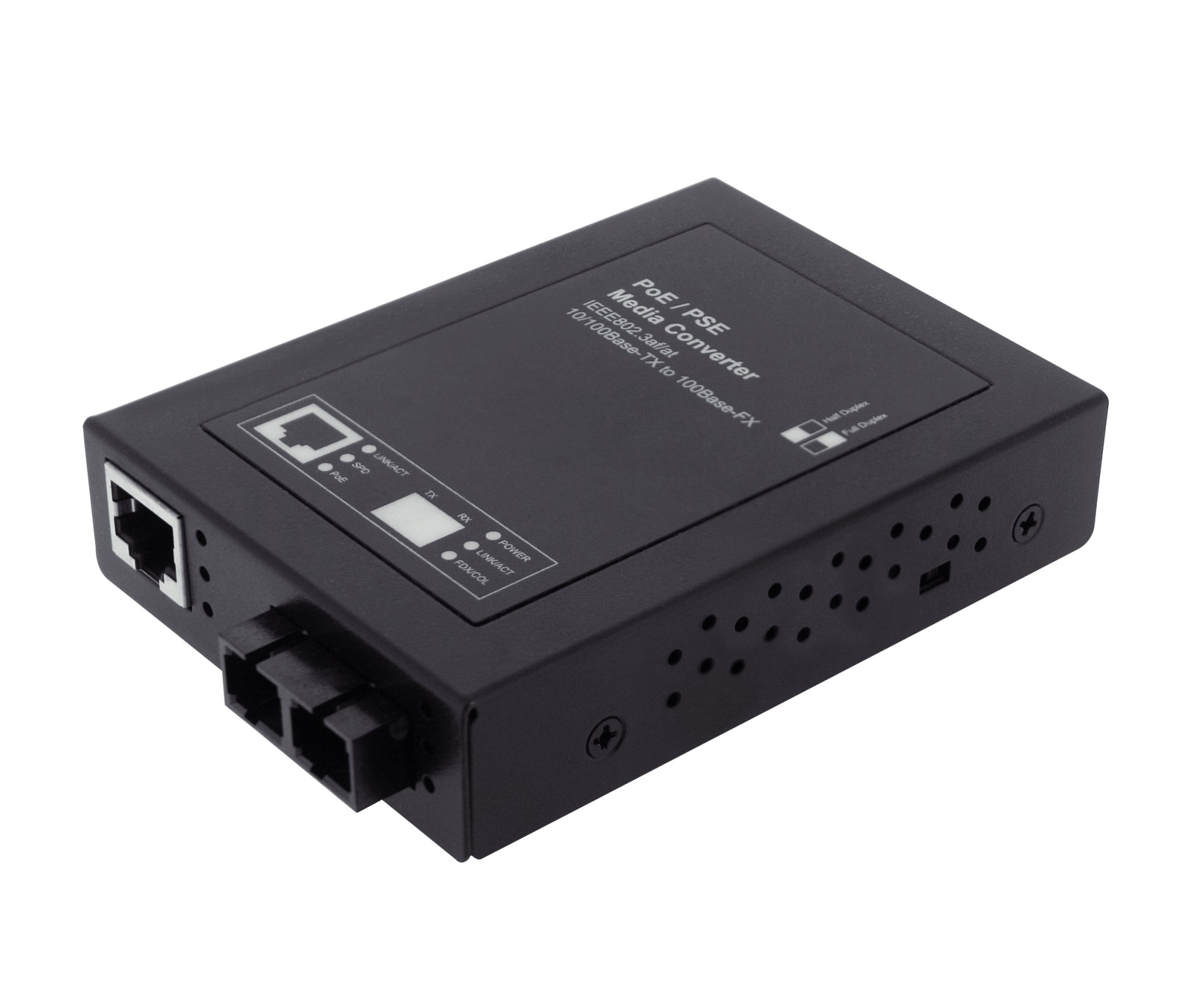

Media Converter 100FX MM SC vs 10/100TX PoE+
The Gigamedia GGM CONVSPSC and GGM CONVMPC converters, convert 10/100TX towards 100FX and are capable of supplying a peripheral in PoE or PoE+. They allow you to save on the installation of a PoE injector, save space inside the cabinets and limit the number of power supply sockets on the same installation. Ideal for urban or industrial surveillance, but also for WiFi access point use, the converters allow you save time with your installations.
Read more
The Gigamedia GGM CONVSPSC and GGM CONVMPC converters, convert 10/100TX towards 100FX and are capable of supplying
a peripheral in PoE or PoE+. They allow you to save on the installation of a PoE injector, save space inside the cabinets and limit the number of power supply sockets on the same installation.
Ideal for urban or industrial surveillance, but also for WiFi access point use, the converters allow you save time with your installations.
| Copper distance (m) | 100 |
|---|---|
| Fiber distance (m) | 2000 |
| Mdi/mdix auto-negotiation | Yes |
| Half and full duplex mode | Yes |
| Switching mode | Store and forward |
| POE | Yes |
| Configuration by micro switches | No |
| Current supply (A) | 0.8 |
| Operating temperature range | From 0 to 40°C |
| Storage Temperature (°C) | -20 - 90 |
| Ethernet | Yes |
| Fast Ethernet | Yes |
| Gigabit Ethernet | No |
| Power over Ethernet | Yes |
| Number of ports 10/100 Mbps RJ45 | 1 |
| Number of ports 100 Mbps SC | 1 |
| Voltage type (supply voltage) | DC |
| Supply voltage DC | 48 - 56 |
| 19 inches mounting | No |
| Wall mounting/direct mounting | No |
| Rail mounting possible | Yes |
| Managed | No |
| Format | Single device |
| Height | 22 mm |
| Width | 102 mm |
| Depth | 74 mm |
