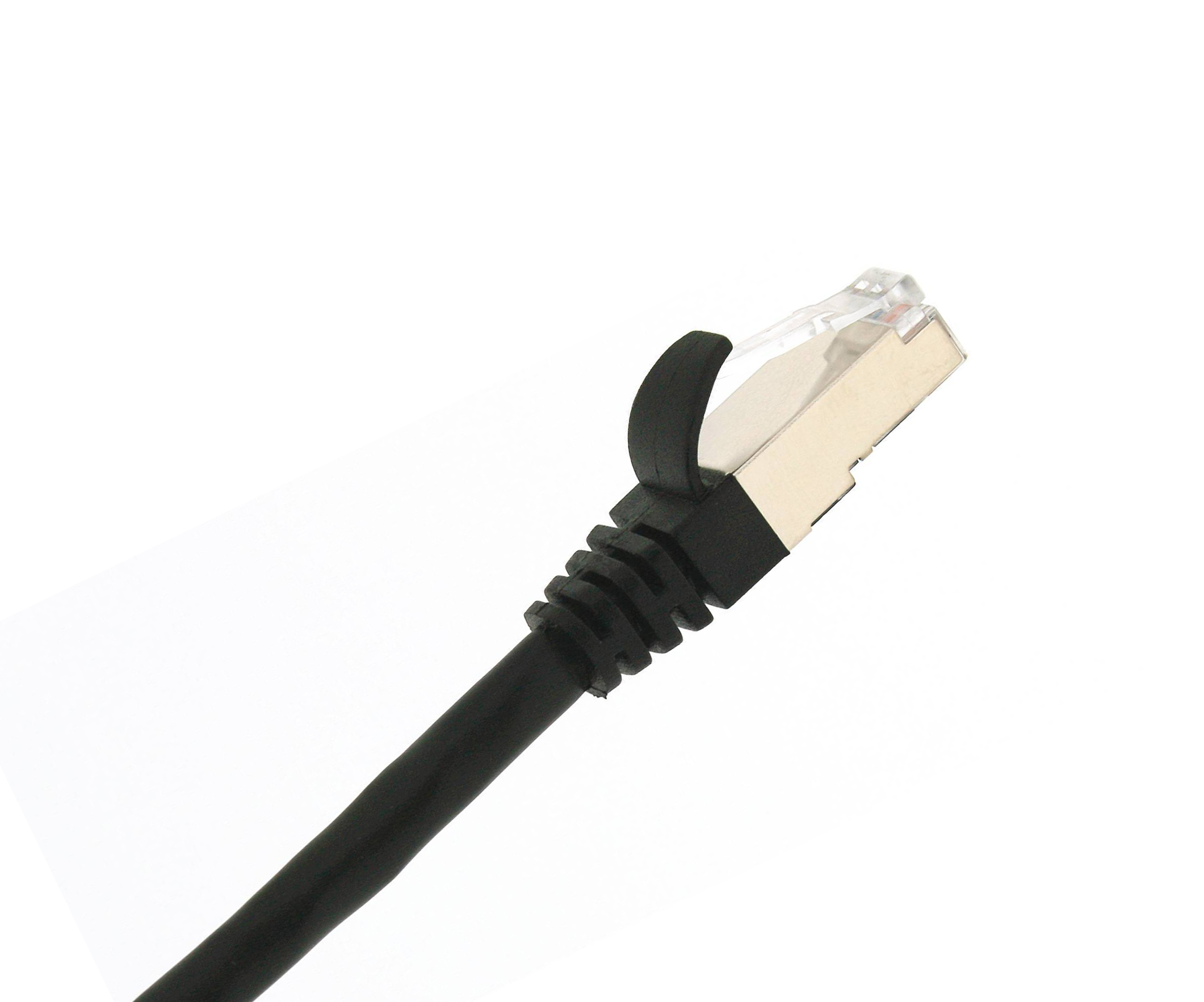

GGM CAT6FU30MPE
Cat.6 Patchcord PE F/UTP AWG26 50µ 4PPoE 90W snagless OD : 6mm black 30m
GIGAMEDIA CAT6 F/UTP patch cords are equipped with modular plug type connectors with 50 μ gold plating. They are equipped with a snagless type injection moulded sleeve which avoids snagging and facilitates the installation and handling of cords installed outdoors. The overmolded sleeve allows for perfect linking of the cable/connector, improving cable life and stability of its characteristics over time. The non-protruding type sleeve facilitates the use of a cable for high density active equipment. The 4 twisted pairs have overall foil screening with multistrand copper conductors. The cable benefits from a thick sheath, protecting and maintaining the geometry of…
Read more
GIGAMEDIA CAT6 F/UTP patch cords are
equipped with modular plug type connectors with 50 μ gold plating. They are equipped with a snagless type injection moulded sleeve
which avoids snagging and facilitates the installation and handling of cords installed outdoors.
The overmolded sleeve allows for perfect linking of the
cable/connector, improving cable life and stability
of its characteristics over time.
The non-protruding type sleeve facilitates the use of a cable for high density active equipment.
The 4 twisted pairs have overall foil screening with multistrand copper conductors. The cable benefits from a thick sheath,
protecting and maintaining the geometry of the 4 twisted pairs.
The result is a sturdy but flexible cable to be used outdoors, offering wide bandwidth and increased longevity.
The manufacturing techniques and control methods guarantee
the GIGAMEDIA cables low interference and signal strength,
thus contributing to maintaining data integrity in high speed applications.
| Applications | IEEE802.3 : 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | F/UTP |
| Category | 6 |
| Standards | ANSI/TIA-568.2-D ; EN 50173 ; ISO/IEC 11801 |
| Outersheath diameter | 6 |
| Frequency range | From 0 to 250 Mhz |
| Impedance | 100 |
| Gauge (awg) | 26 |
| Boot | Molded slim boots |
| Conductor type | Stranded copper |
| NVP (%) | 67 |
| Cable schematics | Right |
| Fire behaviour | N/A |
| Connector type | RJ45 |
| Sheath type | PE |
| Outer jacket colour | Black |
| Packaging | By piece |
ETIM features
| Cable type | F/UTP |
|---|---|
| Length | 30 m |
| Type of connector connection 1 | RJ45 8(8) |
| Type of connector connection 2 | RJ45 8(8) |
| Colour outer sheath | Black |
| Anti-kink sleeve | Moulded-on |
| Locking lever | Yes |
| Colour anti-kink sleeve | Black |
| Fire retardant version | No |
| Oil resistant according to EN IEC 60811-404 | No |
| Cable construction | 1x4 |
| AWG-size | 26 |
| Pin assignment | 1:1 |
| NVP value | 67 % |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
