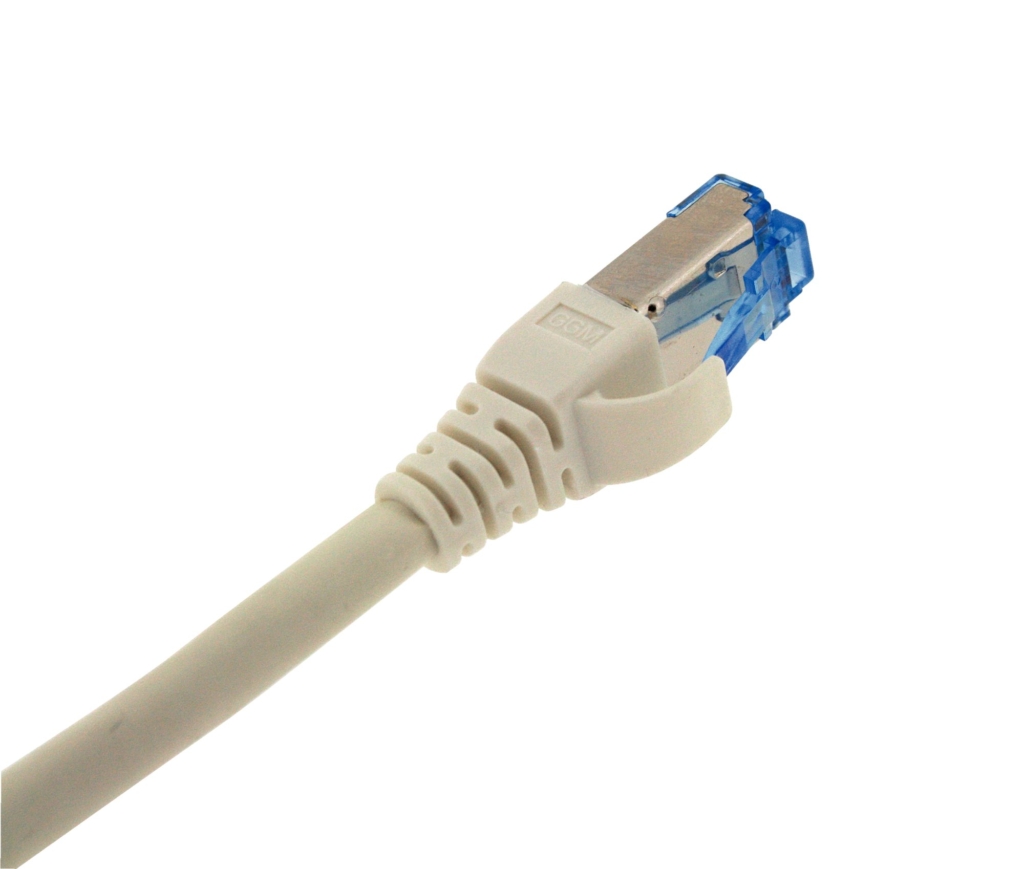

GGM CAT6AS30MWH
Cat.6A Patchcord LSZH S/FTP AWG27 50µ 4PPoE 90W snagless OD : 5,7mm white 30m
Each Gigamedia CAT6A patch cord is subject to transmission testing (100%) and is capable of supporting 10Gigabit applications over a Channel type link over 100 m During assembly, the different stages benefit from the best technologies covering connectors and control, guaranteeing reliability and performance. The CAT6A cords have overmolded, non-protruding sleeves, for better cable support and of the clip protection.
Read more
Each Gigamedia CAT6A patch cord is subject to transmission testing (100%) and is capable of supporting 10Gigabit applications over a Channel type link over 100 m
During assembly, the different stages benefit from the best technologies covering connectors and control, guaranteeing reliability and performance.
The CAT6A cords have overmolded, non-protruding sleeves, for better cable support and of the clip protection.
| Applications | IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | S/FTP |
| Category | 6A |
| Standards | ANSI/TIA-568.2-D ; EN 50173 ; ISO/IEC 11801 |
| Outersheath diameter | 5,7 |
| Frequency range | From 0 to 500 Mhz |
| Impedance | 100 |
| Gauge (awg) | 27 |
| Boot | Molded slim boots |
| Conductor type | Stranded copper |
| NVP (%) | 67 |
| Cable schematics | Right |
| Fire behaviour | IEC 60332-1-[1,2] (2004-07) |
| Connector type | RJ45 |
| Sheath type | LSHF |
| Outer jacket colour | White |
| Packaging | By piece |
ETIM features
| Cable type | S/FTP |
|---|---|
| Length | 30 m |
| Type of connector connection 1 | RJ45 8(8) |
| Type of connector connection 2 | RJ45 8(8) |
| Colour outer sheath | White |
| Anti-kink sleeve | Moulded-on |
| Locking lever | Yes |
| Colour anti-kink sleeve | White |
| Fire retardant version | Yes |
| Oil resistant according to EN IEC 60811-404 | No |
| Cable construction | 1x4 |
| AWG-size | 28 |
| Pin assignment | 1:1 |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
