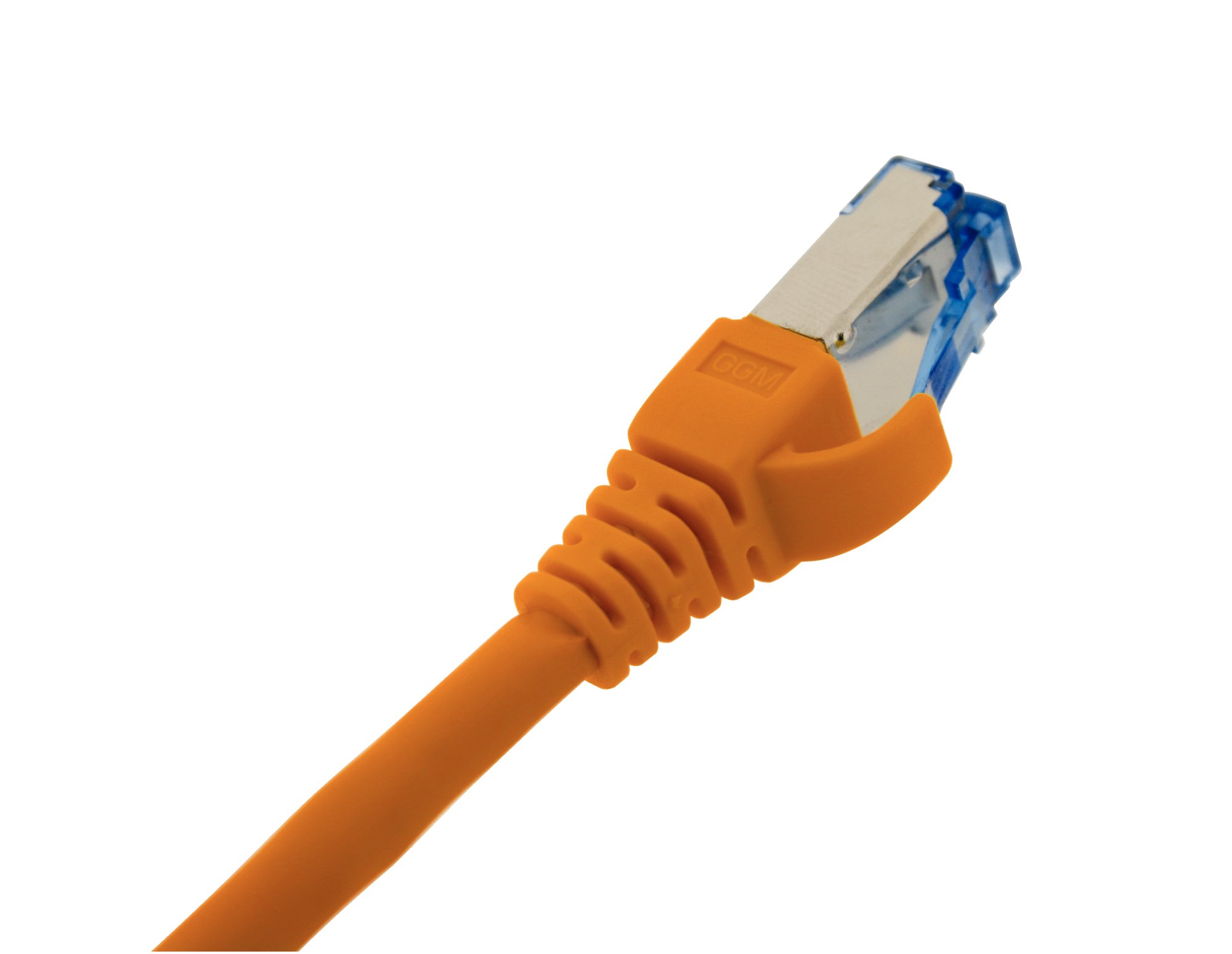

GGM CAT6AS10MOG
Patch cord CAT6A S/FTP LSZH 10 m orange
Each Gigamedia CAT6A patch cord is subject to transmission testing (100%) and is capable of supporting 10Gigabit applications over a Channel type link over 100 m During assembly, the different stages benefit from the best technologies covering connectors and control, guaranteeing reliability and performance. The CAT6A cords have overmolded, non-protruding sleeves, for better cable support and of the clip protection.
Read more
Each Gigamedia CAT6A patch cord is subject to transmission testing (100%) and is capable of supporting 10Gigabit applications over a Channel type link over 100 m
During assembly, the different stages benefit from the best technologies covering connectors and control, guaranteeing reliability and performance.
The CAT6A cords have overmolded, non-protruding sleeves, for better cable support and of the clip protection.
Product features
| Applications | IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | S/FTP |
| Category | 6A |
| Standards | ANSI/TIA-568.2-D ; EN 50173 ; ISO/IEC 11801 |
| Outersheath diameter | 5,7 |
| Frequency range | From 0 to 500 Mhz |
| Impedance | 100 |
| Gauge (awg) | 27 |
| Boot | Molded slim boots |
| Conductor type | Stranded copper |
| NVP (%) | 67 |
| Cable schematics | Right |
| Fire behaviour | IEC 60332-1-[1,2] (2004-07) |
| Connector type | RJ45 |
| Sheath type | LSHF |
Article features
| Outer jacket colour | Orange |
|---|---|
| Packaging | By piece |
ETIM 9 features
| Shield type | S/FTP |
|---|---|
| Length | 10 m |
| Connector A | RJ45 8(8) |
| Connector B | RJ45 8(8) |
| Jacket colour | Orange |
| Snagless | Yes |
| Boot colour | Orange |
| Fire retardant | No |
| Oil resistant | No |
| Number of pairs | 1x4 |
| AWG | 27 |
| Wire scheme | 1:1 |
| NVP | 78 % |
