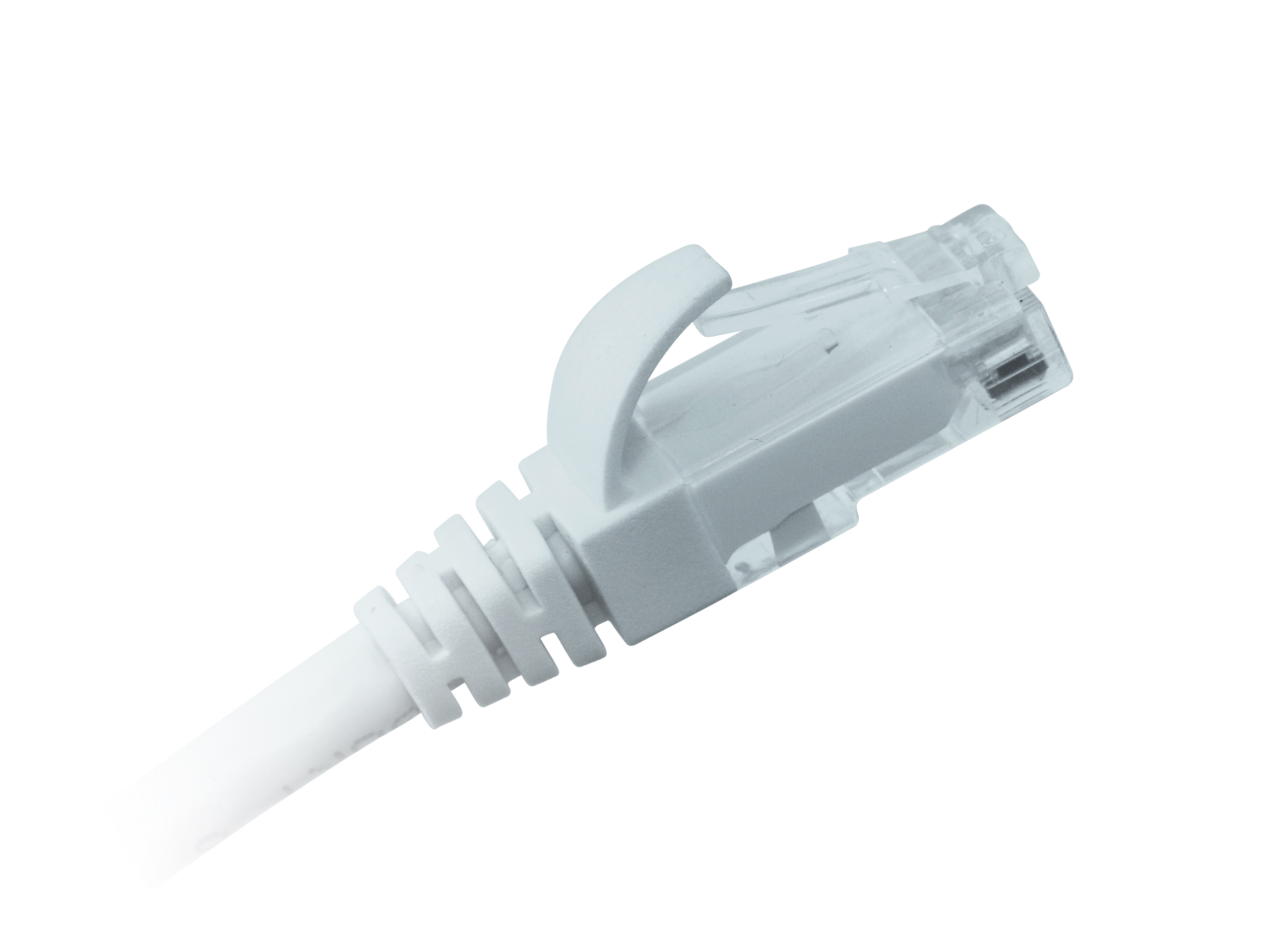

GGM CAT6A03MHFW
Slim Cat.6A Patchcord LSZH U/UTP AWG28 50µ 4PPoE snagless OD : 4,8mm white 0m30
GIGAMEDIA CAT6A U/UTP patch cords are the ideal solution when deploying high-bitrate applications up to 10Gbit/s, and the remote power supply of equipment up to 90W (4PPoE). Each and every patch cord undergoes electrical performance testing to ensure its capability, reliability and performance
Read more
GIGAMEDIA CAT6A U/UTP patch cords are the ideal solution when deploying high-bitrate applications up to 10Gbit/s, and the remote power supply of equipment up to 90W (4PPoE).
Each and every patch cord undergoes electrical performance testing to ensure its capability, reliability and performance
Each and every patch cord undergoes electrical performance testing to ensure its capability, reliability and performance
| Applications | IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | U/UTP |
| Category | 6A |
| Standards | IEC 61156-5, ANSI/TIA-568.2-D, EN50288-6-1 |
| Outersheath diameter | 4.8 |
| Frequency range | From 0 to 500 Mhz |
| Impedance | 100 |
| Gauge (awg) | 28 |
| Boot | Molded |
| Conductor type | Copper |
| NVP (%) | 78 |
| Cable schematics | Right |
| Fire behaviour | IEC 60332-1 |
| Connector type | RJ45 |
| Sheath type | LSHF |
| Outer jacket colour | White |
| Packaging | By piece |
ETIM features
| Cable type | U/UTP |
|---|---|
| Length | 300 m |
| Type of connector connection 1 | RJ45 8(8) |
| Type of connector connection 2 | RJ45 8(8) |
| Colour outer sheath | White |
| Anti-kink sleeve | Moulded-on |
| Locking lever | Yes |
| Colour anti-kink sleeve | White |
| Fire retardant version | No |
| Halogen free according to EN IEC 60754-1 | No |
| Halogen free according to EN IEC 60754-2 | No |
| Halogen free according to EN IEC 60754-3 | No |
| Oil resistant according to EN IEC 60811-404 | No |
| Cable construction | 1x4 |
| AWG-size | 28 |
| Pin assignment | 1:1 |
| NVP value | 78 % |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
