GGM C7SF4PFRT5

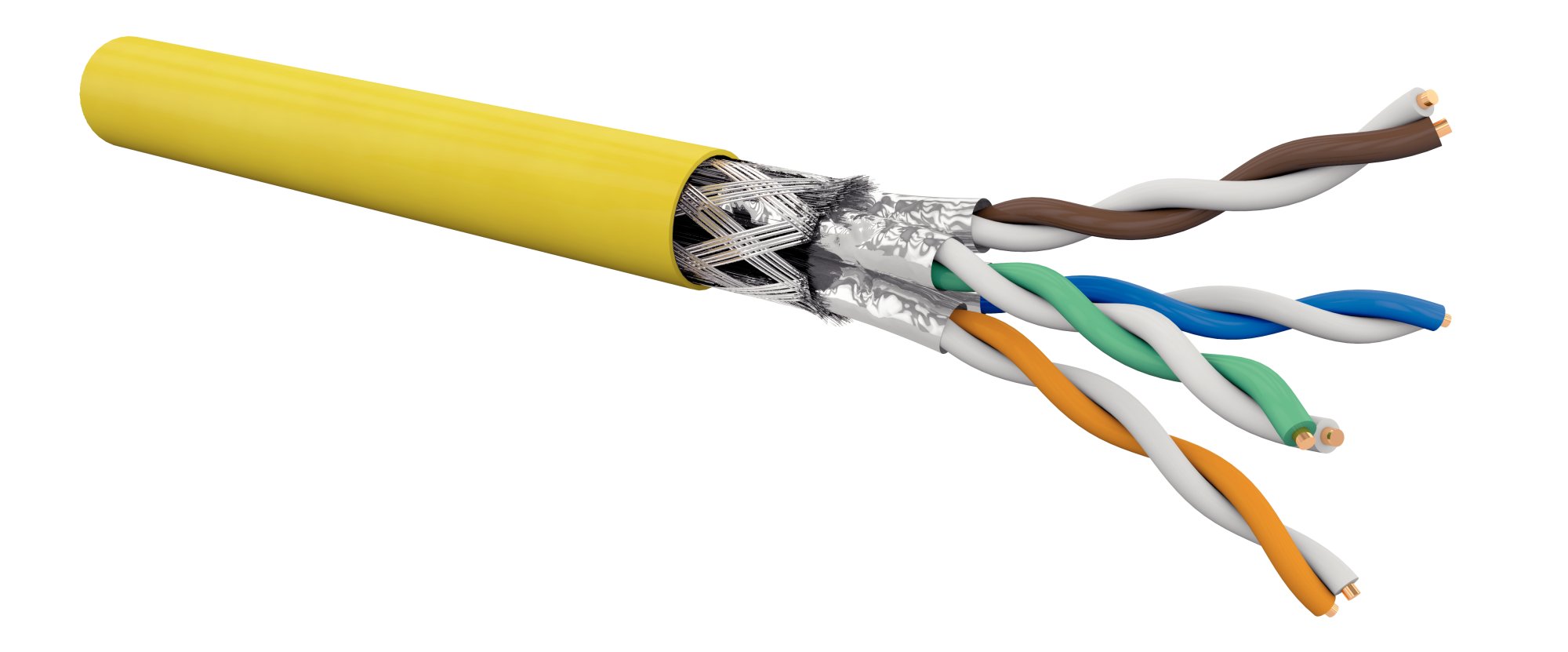

CABLE CAT7 4P SFTP AWG23 HF-FR Cca, YELLOW T500M

The GIGAMEDIA CAT7 cables are designed to exceed the specifications relative to the corresponding Class F standards and support applications up to 10 Gigabit Ethernet (10GBaseT). These cables are screened in pairs in order to optimise the NEXT (crosstalk) performance and possess a braid for overall screening. Associated with the GIGAMEDIA CAT6A screened connectors, screening by pairs as well as the overall braid also offers the possibility of optimising electromagnetic interference immunity.

Applications	IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE)
Shielding	S/FTP
Category	7
Standards	ANSI/TIA-568.2-D ; EN 50173 ; ISO/IEC 11801
Frequency range	From 0 to 600 Mhz
Impedance	100
Gauge (awg)	23
Conductor type	Solid copper
Number of pairs	1X4
Jacket type	LSZH-FR
Outer jacket colour	Yellow
Jacket RAL	RAL 1021
Outer sheath diameter (mm)	7.6
NVP (%)	82
Fire behaviour	EN 13501-6 : Cca s1,d1,a1; EN 50575; EN 50399; EN 60332-3
Insulation diameter (mm)	1.33
Insulation Material	Polyethylene
Marking	GIGAMEDIA EN 50173 CAT7 S/FTP LSZH-FR -C7SF4PFR -TP036A ? Cca s1a d1 a1 NVP 82% 4PAIR 23 AWG [lot n°] XXXX m
Packaging	500 m drum
Shield type	S/FTP
Duplex	No
Conductor material	Copper
Conductor surface	Bare
AWG size	23
Conductor construction	Class 1 = solid
Number of conductors	8
Number of stranding elements	4
Pairing	Pairs
Insulation	Other
Specification core insulation	Polyethylene (PE)
Core identification according to HD 308 S2	No
Conductor identification	Colour
Shield	Foil
Stranding	Other
Longitudinal water blocking cable	No
Radial water blocking cable	No
Suitable for underground installation	No
Approved type of underground installation	Underground installation tube
Jacket colour	Yellow
Armouring/reinforcement	None
Cable geometry	Round
Flame retardant according to IEC 60332-1-2	Yes
Flame retardant according to IEC 60332-3-22 (Cat A)	No
Flame retardant according to IEC 60332-3-23 (Cat B)	No
Flame retardant according to IEC 60332-3-24 (Cat C)	Yes
Flame retardant according to IEC 60332-3-25 (Cat D)	Yes
Low smoke according to EN IEC 61034-2	Yes
Halogen free according to EN IEC 60754-2	Yes
Reaction-to-fire according to EN 13501-6	Class : Cca
Oil resistant	No
Cable OD	7.6 mm
Operating temperature	00 - 50
NVP	74 %
UV resistant	No
Certified for shipboard application	No
Segregation class according to EN 50174-2	D
Suitable as telephone cable	No
Suitable as computer data cable	Yes
Suitable as signalling cable	No
Suitable for use as security alarm cable	No
Drain wire	Yes
With rip cord	No
Rodent protected	No
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
