GGM C6F4PZHT3

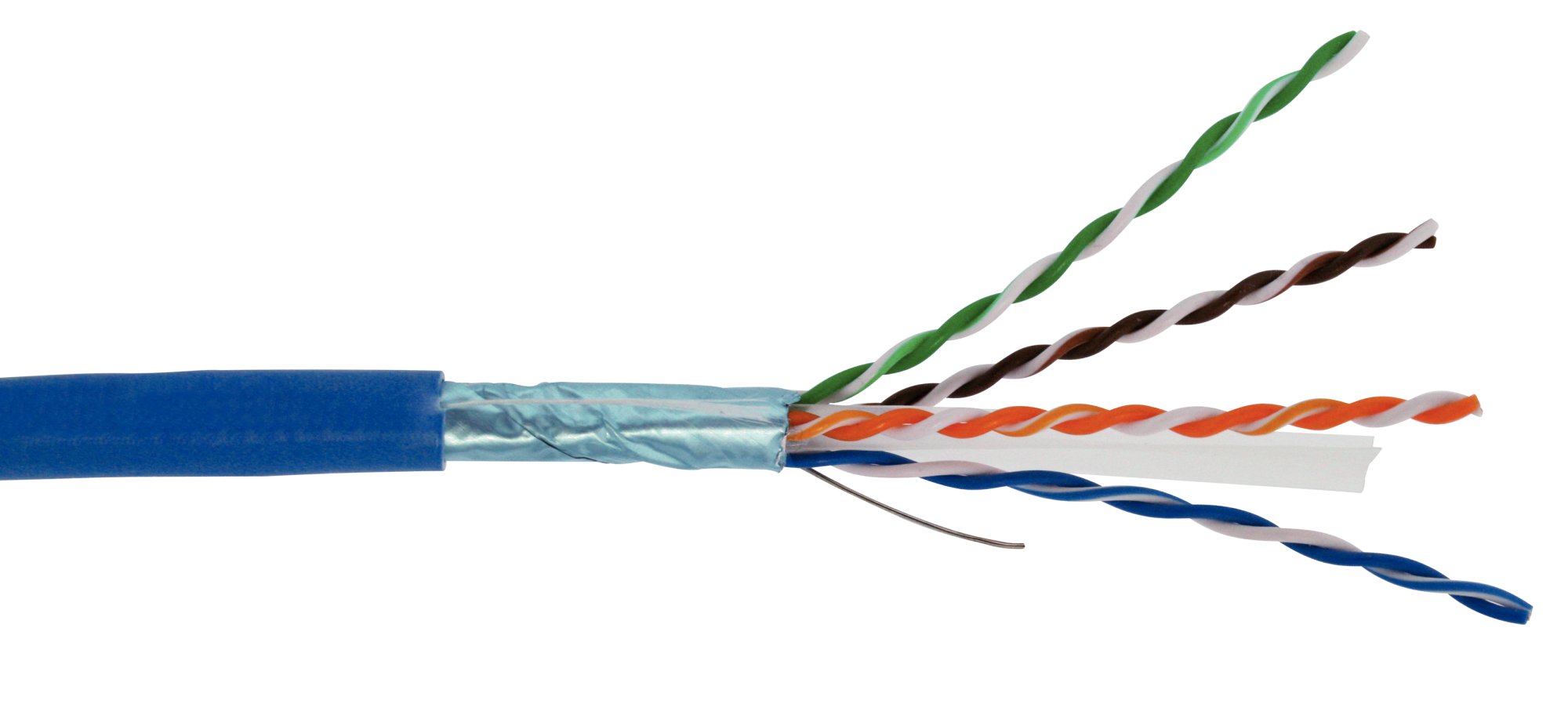

CABLE 4P CAT6 AWG24 F/UTP LSZH Dca, BLUE T305M
GIGAMEDIA CAT6 cables are designed to exceed Class E specifications (Category 6) Implementation combining reliability, performance and quality, guarantees the stability of all the physical characteristics and maintains transmission performance after installation. Each cable is printed with a sequential metre marking.
Read more
GIGAMEDIA CAT6 cables are designed to exceed Class E specifications (Category 6)
Implementation combining reliability, performance and quality, guarantees the stability of all the physical characteristics and maintains transmission performance after installation.
Each cable is printed with a sequential metre marking.
| Applications | IEEE802.3 : 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | F/UTP |
| Category | 6 |
| Standards | EN50173, ; ISO/IEC 11801, ; ANSI/TIA-568-C.2 |
| Frequency range | From 0 to 400 Mhz |
| Impedance | 100 |
| Gauge (awg) | 24 |
| Conductor type | Solid copper |
| Number of pairs | 1X4 |
| Jacket type | LSZH |
| Outer jacket colour | Blue |
| Jacket RAL | RAL 5012 |
| Outer sheath diameter (mm) | 6.8 |
| NVP (%) | 66 |
| Fire behaviour | EN 13501-6 : Dca s2 d1 a1 ; EN 50575 ; EN 50399 ; EN 60332-1-2 |
| Insulation diameter (mm) | 1.14 |
| Insulation Material | Polyethylene |
| Marking | GIGAMEDIA EN 50173 CAT6 F/UTP LSZH -C6F4PZH -TP007A ? Dca NVP 70% 4PAIR 24 AWG [lot n°] XXXXXX m |
| Packaging | 305 m drum |
| Shield type | F/UTP |
| Conductor material | Copper |
| Conductor surface | Bare |
| Conductor OD | 0.511 mm |
| Conductor cross-section | 0.203 mm² |
| AWG size | 24 |
| Conductor construction | Class 1 = solid |
| Number of conductors | 8 |
| Pairing | Pairs |
| Insulation | Other |
| Specification core insulation | Polyethylene (PE) |
| Conductor identification | Colour |
| Shield | None |
| Stranding | Other |
| Approved type of underground installation | Underground installation tube |
| Jacket colour | Blue |
| Armouring/reinforcement | None |
| Cable geometry | Round |
| Reaction-to-fire according to EN 13501-6 | Class : Dca |
| Cable OD | 7.1 mm |
| Installation temperature | 00 - 50 |
| Operating temperature | -20 - 60 |
| NVP | 67 % |
| Segregation class according to EN 50174-2 | C |
