GGM C6AFF4PSHFU3

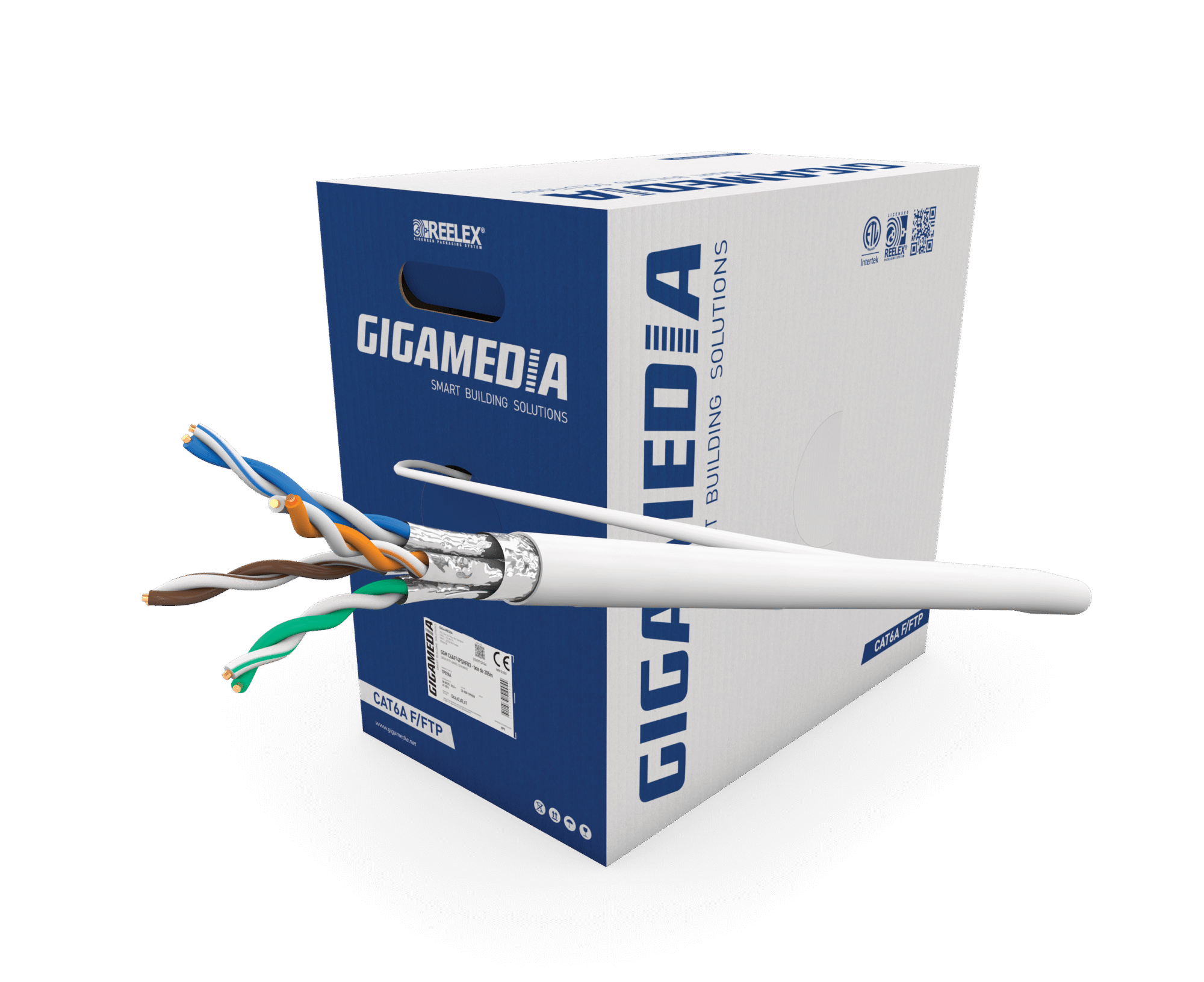

CAT6A 4 pairs AWG23 F/FTP SLIM LSOH Dca cable, White (305m box Reelex)

Thanks to cutting edge technoolgies, this cable is manufactured in a way to exceed the ISO, ANSI/TIA and CENELEC for Class EA, Category 6A applications. It Can easily be integrated into a Class EA link, in order to support applications up to 10GBASE-T (10Gbits Ethernet). It has a good shielding effectiveness with global and individual screened pairs (F/FTP). Compatible with all current connecting hardware in accordance with EN 50173 and ISO/IEC 11801. Reduce the amount of cable space required in Racks and cabinets, increase cable pathway capacity.

Thanks to cutting edge technoolgies, this cable is manufactured in a way to exceed the ISO, ANSI/TIA and CENELEC for Class EA, Category 6A applications. It Can easily be integrated into a Class EA link, in order to support applications up to 10GBASE-T (10Gbits Ethernet).
It has a good shielding effectiveness with global and individual screened pairs (F/FTP).
Compatible with all current connecting hardware in accordance with EN 50173 and ISO/IEC 11801.

Reduce the amount of cable space required in Racks and cabinets, increase cable pathway capacity.

Applications	IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE)
Shielding	F/FTP
Category	6A
Standards	ANSI/TIA-568-C.2, CAT6A ; EN 50173:2007 ; ISO/IEC 11801 2nd edition:2002
Frequency range	From 0 to 550 Mhz
Impedance	100
Gauge (awg)	23
Conductor type	Solid copper
Number of pairs	1X4
Jacket type	LSZH
Outer jacket colour	White
Jacket RAL	RAL 9001
Outer sheath diameter (mm)	6.4
NVP (%)	78
Fire behaviour	EN 13501-6: Dca-s2, d2, a1; EN 50575; EN 50399; EN 60332-1
Insulation diameter (mm)	1.35
Insulation Material	Foam PE
Marking	GIGAMEDIA EN50173 CAT6A F/FTP LSZH C6AFF4PSHF-TP028A Dca NVP 78% 4 PAIRS 23AWG
Packaging	305 m box
Shield type	F/FTP
Conductor material	Copper
Conductor surface	Bare
AWG size	23
Conductor construction	Class 1 = solid
Number of conductors	8
Number of stranding elements	8
Pairing	Pairs
Insulation	Polyamide (PA)
Specification core insulation	Polypropylene (PP)
Core identification according to HD 308 S2	No
Conductor identification	Colour
Shield	Foil
Stranding	Other
Longitudinal water blocking cable	No
Radial water blocking cable	No
Suitable for underground installation	No
Approved type of underground installation	Underground installation tube
Protective sheath	Other
Specification material outer sheath	Other
Jacket colour	White
Armouring/reinforcement	None
Cable geometry	Round
Low smoke according to EN IEC 61034-2	Yes
Halogen free according to EN IEC 60754-2	Yes
Reaction-to-fire according to EN 13501-6	Class : Dca
Oil resistant	No
NVP	78 %
UV resistant	No
Certified for shipboard application	No
Segregation class according to EN 50174-2	C
Suitable as telephone cable	No
Suitable as computer data cable	Yes
Suitable as signalling cable	No
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
