GGM C6AF4PZHT3

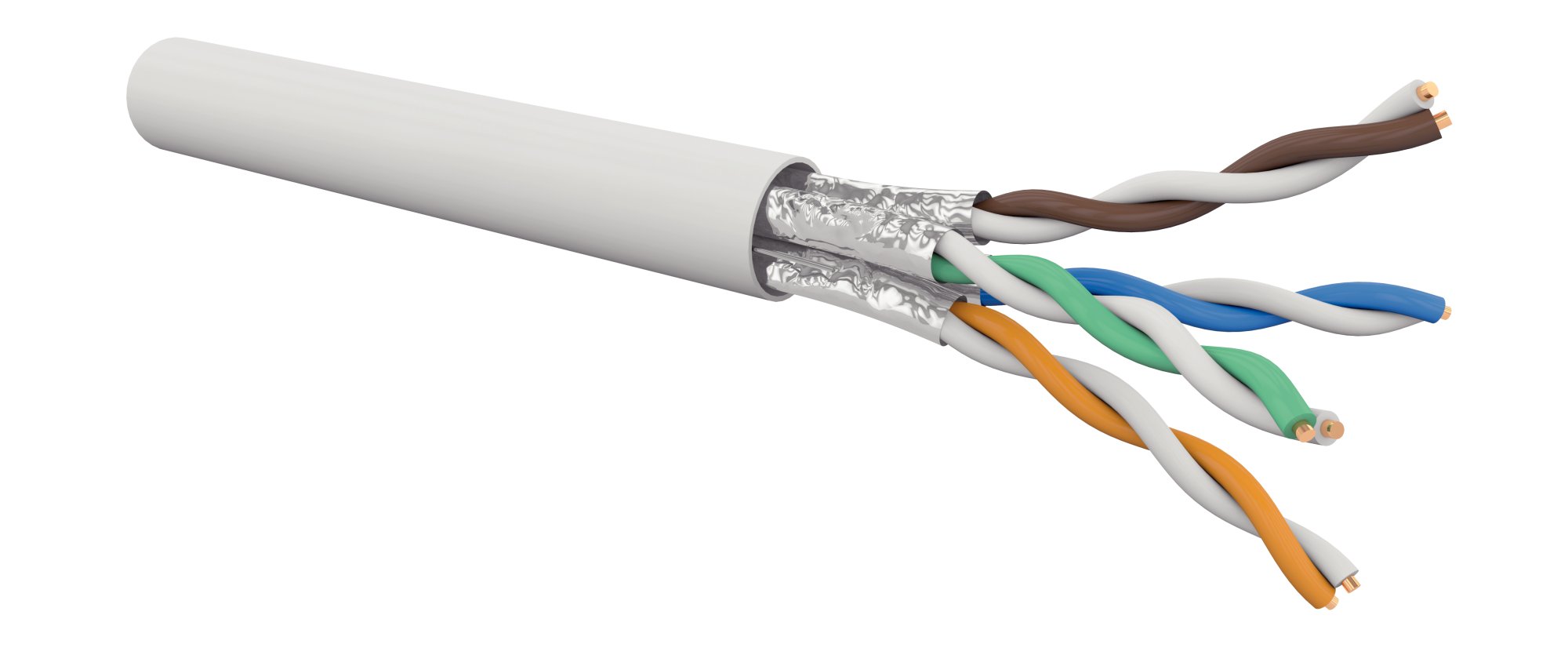

CABLE CAT6A 4P AWG23 U/FTP LSZH Dca, WHITE D305M
Tested at 550 MHz, and certified by an independent laboratory (3P), GIGAMEDIA CAT6A cables are designed to exceed the Class Ea specification, and ensure Ethernet applications up to 10 Gigabits/s, as well as PoE (remote supply according to IEEE 802.3af/at). Its pair screening optimises Next performance, and ensures optimal bandwidth.
Read more
Tested at 550 MHz, and certified by an independent laboratory (3P), GIGAMEDIA CAT6A cables are designed to exceed the Class Ea specification, and ensure Ethernet applications up to 10 Gigabits/s, as well as PoE (remote supply according to IEEE 802.3af/at). Its pair screening optimises Next performance, and ensures optimal bandwidth.
| Applications | IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | U/FTP |
| Category | 6A |
| Standards | ANSI/TIA-568.2-D ; EN 50173 ; ISO/IEC 11801 |
| Frequency range | From 0 to 550 Mhz |
| Impedance | 100 |
| Gauge (awg) | 23 |
| Conductor type | Solid copper |
| Number of pairs | 1X4 |
| Jacket type | LSZH |
| Outer jacket colour | White |
| Jacket RAL | RAL 9003 |
| Outer sheath diameter (mm) | 7.8 |
| NVP (%) | 74 |
| Fire behaviour | EN 13501-6 : Dca, s2, d2, a2 ; EN 50575, EN 50399 ; EN 60332-1-2 |
| Insulation diameter (mm) | 1.4 |
| Insulation Material | Polyethylene |
| Marking | GIGAMEDIA EN 50173 CAT6A U/FTP LSZH -C6AF4PZH -TP004A ? Dca NVP 74% 4PAIR 23 AWG [lot n°] XXXXXX m |
| Packaging | 305 m drum |
| Shield type | U/FTP |
| Conductor material | Copper |
| Conductor surface | Bare |
| Conductor OD | 0.55 mm |
| Conductor cross-section | 0.238 mm² |
| AWG size | 23 |
| Conductor construction | Class 1 = solid |
| Number of conductors | 8 |
| Pairing | Pairs |
| Insulation | Other |
| Specification core insulation | Polyethylene (PE) |
| Conductor identification | Colour |
| Shield | Foil |
| Stranding | Other |
| Approved type of underground installation | Underground installation tube |
| Jacket colour | White |
| Armouring/reinforcement | None |
| Cable geometry | Round |
| Reaction-to-fire according to EN 13501-6 | Class : Dca |
| Cable OD | 7.3 mm |
| Installation temperature | 00 - 50 |
| Operating temperature | -20 - 60 |
| NVP | 74 % |
| Segregation class according to EN 50174-2 | C |
