GGM BOXOPTIC

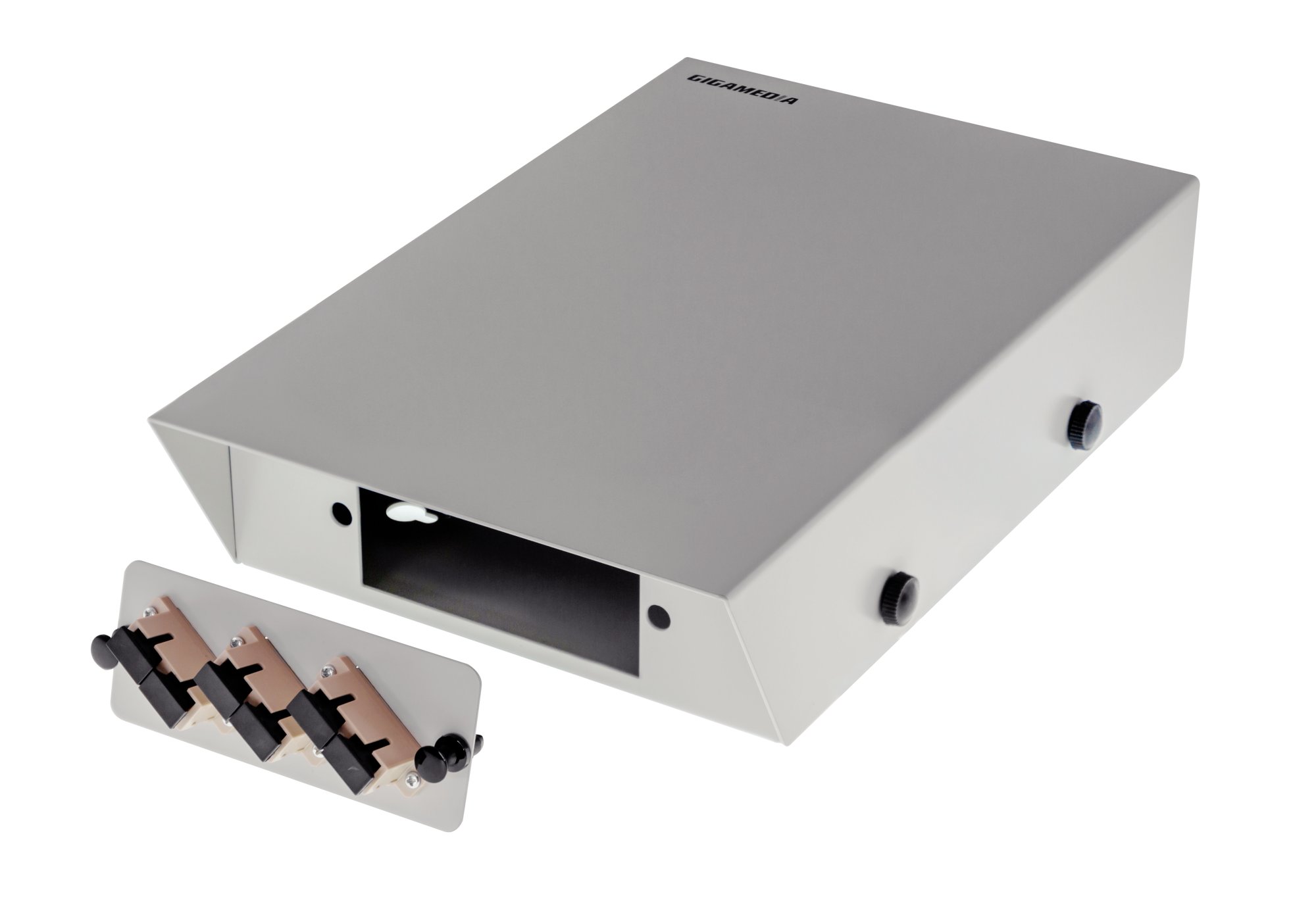

6-8 FO wall mount metal box, for SC/ST/LC/FC simplex or duplex adapters

The BOXOPTIC wall panel is an economical solution ideal for installations up to 12 fibre optics (LC duplex). It offers the possibility of integrating the most used connectors on the fibre optic network depending on the module selected. This panel is intended for indoor use and is fixed directly to a wall or panel.

RAL	7035
Dual function	Direct connection through fusion splices or adapters (4, 12 or 24 fibers)
Compliant adapters	SC simplex or LC duplex
Capacity	6 to 12 FO
Cable entries	2 x rear cable entries
Cables Inputs/Outputs	2 entries at the back
Locking system	By screws
Color	Grey
Included	Spooling clips
Accepts modular plates	to be loaded with SC, ST or LC adapters
Splice tray	Included
Weight (kg)	1.35
Fibre count	6
Connection method	Fusion splice
Material	Metal
Separated compartments	No
Lockable	No
IP protection	IP20
