GGM AXREMF1KW2M

READER MF/EM W32 IP66 CABLE 2M

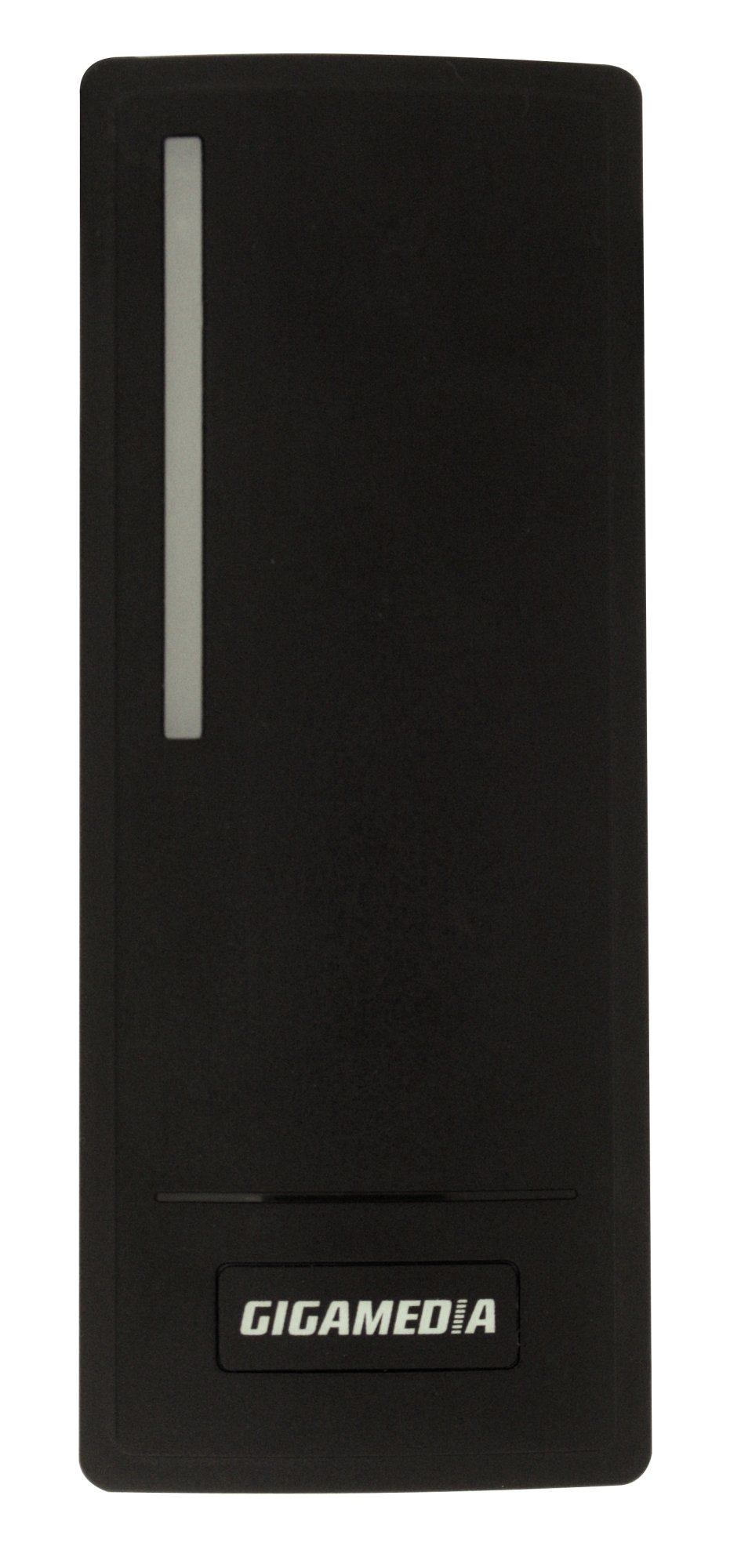

The GIGAMEDIA proximity reader uses dual technology. It is able to read both the EM frequency 125kHz and Mifare Classic 13.56 MHz. This is very useful for the recovery and extension of an installation. It has a 32 bit Wiegand output. It can be connected to the GGM AXC product family (centralized solution) It can be installed indoors and outdoors. It has IP66 protection thanks to the resin coating of the electronic board. With its discreet design, it can be installed in most situations.

Color	Black
Power Consumption	25 mA
Reader type	Rfid
Output	Wiegand 32 bit
Feeding range	9~24 VDC
Reading distance
Rfid technology	Em
Sleepmode current (mA)
Status led	Yes
Accepted frequency	Em (125khz), mifare (13.56mhz)
Supported technology
Weight (kg)
Supply voltage
Weight (g)	153
Dimensions	(mm) :
Operating temperature range	From -40 to 60°C
Led indicator
Automation relay
Voltage and current on automation relay
Warranty period	24
Connector type
Cable length (m)	2
Vandal proof rating (IK)
IP Protection	IP66
Fire rating
Chemical resistance
Standard iso1443 type a
Standard iso18092 (nfc)
13.56 MHz compatibility
125 kHz compatibility
Smartphone compatibility
Reader/central protocol
Communication interface
Data protection
Sound alert
ANSSI Certification
Width	48 mm
Height	120 mm
Depth	20 mm
