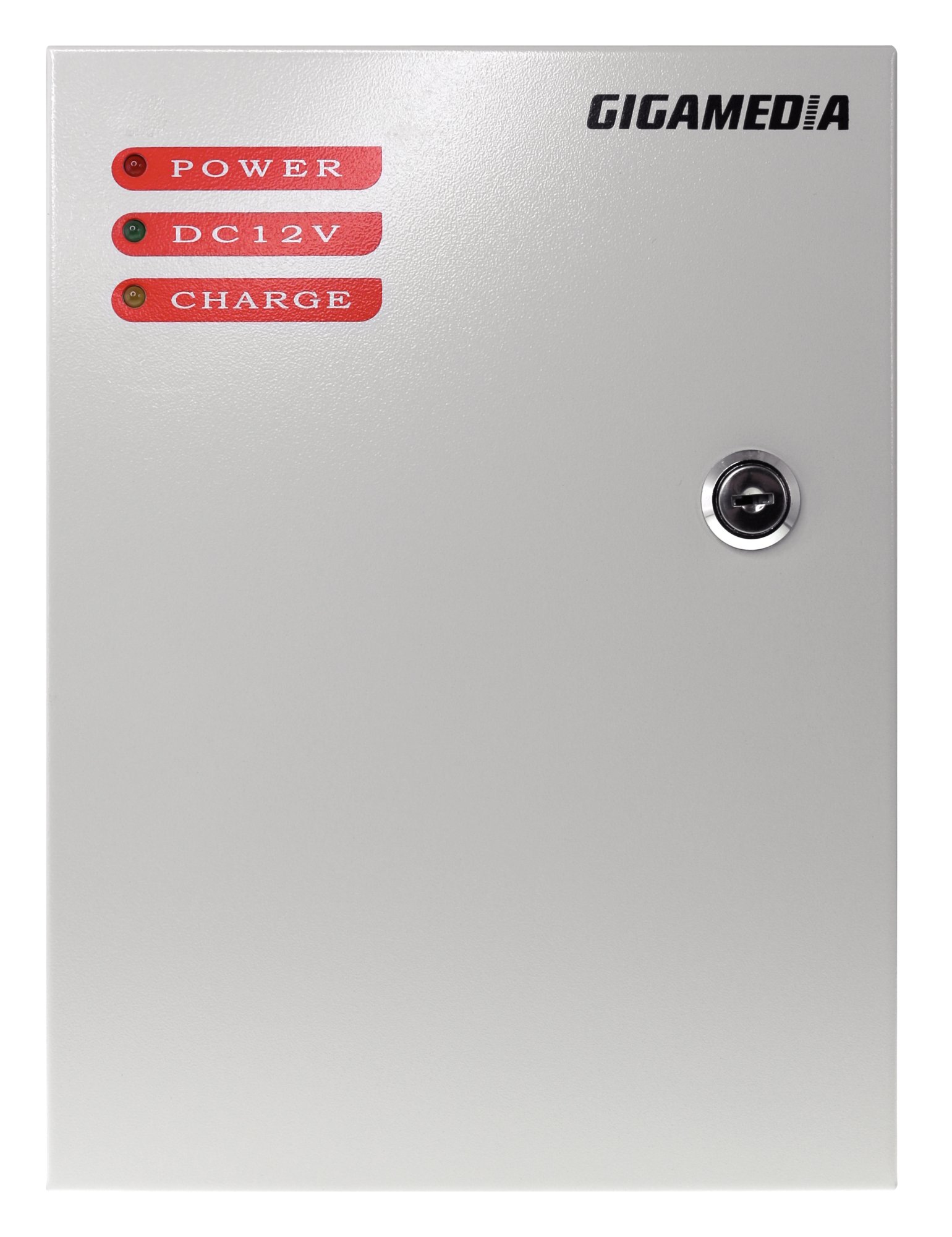

GGM AXP1D52BV1

POWER BOX FOR AXA SERIES

The GGM AXP1D52BV1 power supply box provides an autonomous solution for access control for the GGM AXA range. This product comprises a 12 V DC power supply complete with 2 outlets able to power the central control panel and the locking circuit. It has space for a 12 V DC / 7Ah battery. Its dimensions allow it to be placed in restricted areas. On the front face of the box, there are LEDs allowing to check in the blink of an eye, without opening the box, the power supply status.

Power supply	220 vac
Power outputs	2 x 12vdc (1 x 1a and 1 x 4a)
Battery slot	Yes 12 v dc / 7 ah
12VDC battery input	Yes
Voltage type (supply voltage)	AC
Max. output current 1	2 A
Max. output current 2	3 A
Secondary voltage adjustable	No
Short-circuit-proof	Yes
Rated supply voltage AC 50 Hz	220 - 220
Rated supply voltage AC 60 Hz	220 - 220
Rated supply voltage DC	220 - 220
Output voltage stabilized	No
Stabilized	Yes
Type of electric connection	Screw connection
Rail mounting possible	No
Wall mounting possible	Yes
Modular version	No
Suitable for safety functions	Yes
