STRIKE RUPTURE + TET SYM LONG

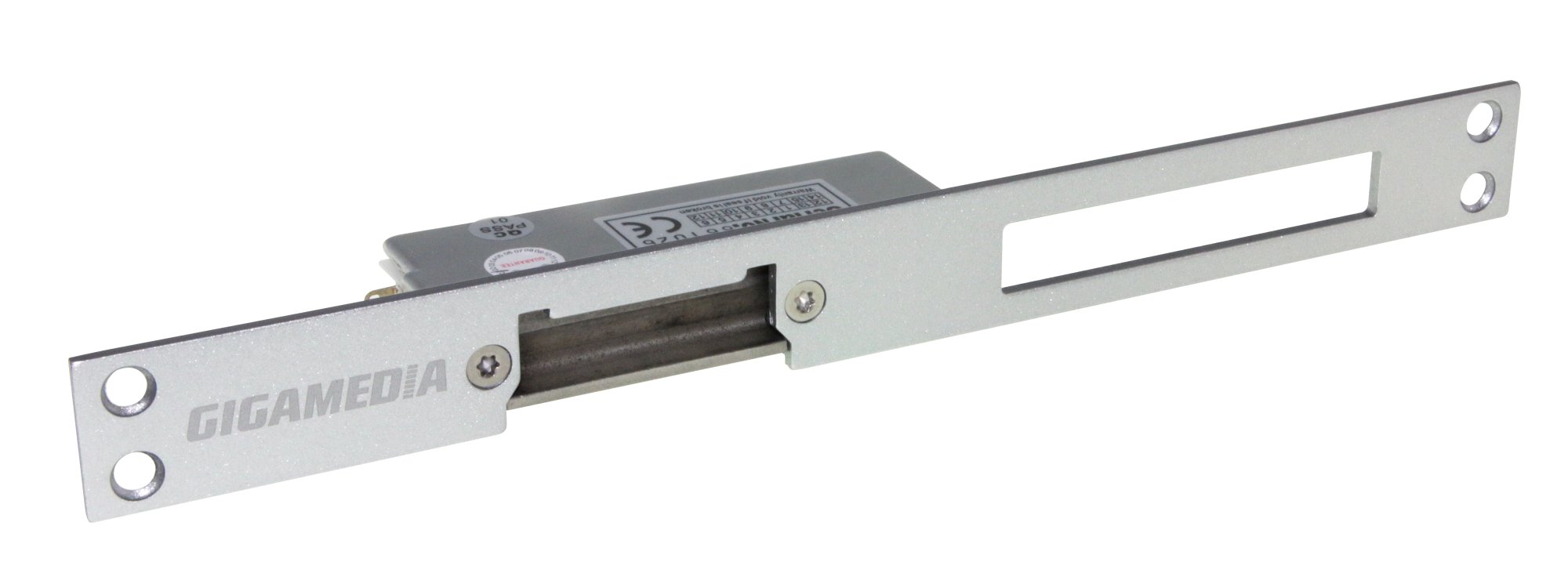

The GGM AXEEOA1L is a recessed breakaway electric strike working in fail-safe mode (normally closed). It is a reversible, symmetrical product and uses a 12 V DC supply. It is delivered with a long faceplate suitable for most projects.

Strike type	Fail safe
Operating mode	Rupture
Retention force (kg)	500
Power supply	12 vdc
Operating temperature range	From -10°c to 55°c
Headrest	Long
Voltage (V)	12
Power Consumption	200 mA
Integrated varistor	No
Material	Stainless steel
Format	Symmetric
Built-in position	Universal
Height	250 mm
Width	25 mm
Depth	28 mm
Assembly arrangement	Frame part
Voltage	12 VDC
With locking	No
With mechanical unlocking	No
With feedback signal	No
Opening direction according to DIN	Left/right
Water protected	No
Mounting method	Built-in
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Type of current	DC
Principle of operation	Working current
Compatible with Amazon Alexa	No
IFTTT support available	No
Pulse contact	No
Adjustable door opener latch	No
Adjustable door opener	No
Adjustable strike plate	No
Latch guide integrated	No
For latch bolt slide	No
Unlocking method	Standard model
Continuous operation (100 % ED)	No
Mechanical unlock	No
Suitable for fire protection door	No
Suitable for smoke protection door	No
Forend shape	None
With strike plate	Yes
Basic colour of strike plate	Silver
Length of strike plate	90 mm
Width of strike plate	25 mm
Deadbolt outcut	Yes
For bolt switch contact prepared	No
