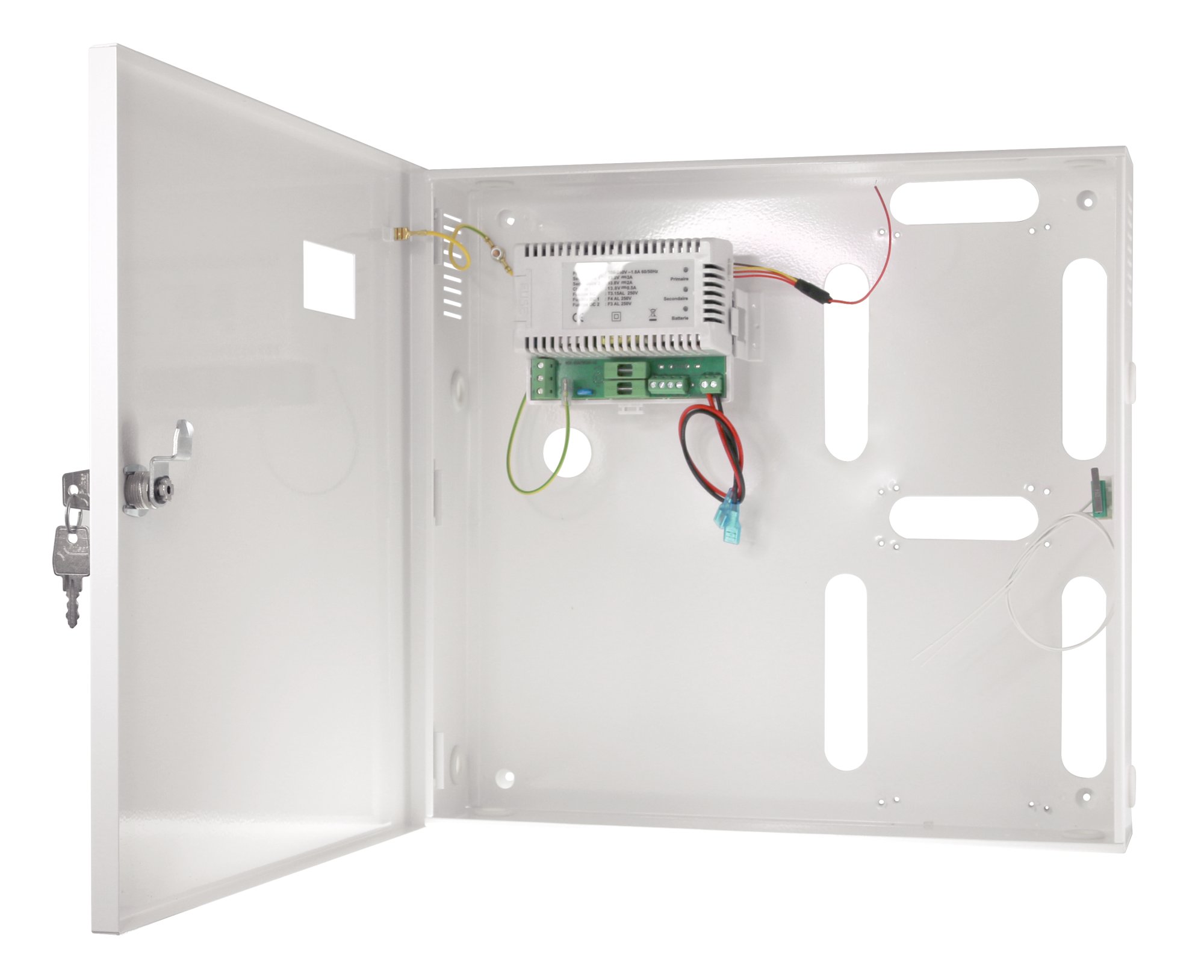

GGM AXCOF2202M
POWER BOX FOR AXC SERIES
The AXCOF2202M power supply unit allows two access control modules to be integrated into the centralised access control panel (AXCxDIPEVO or AXC4DEXTEVO). It has 2 12V DC split power outputs with total power of 5 A (3+2 A). An empty space will accept a battery up to 18 Ah. The product also includes a sensor to open the unit which can be connected to the central control panel or to the extension module. The unit also has a 1 cm space to facilitate cable management at the rear. A cut out in the door allows to directly monitor the power…
Read more
The AXCOF2202M power supply unit allows two access control modules to be integrated into the centralised access control panel (AXCxDIPEVO or AXC4DEXTEVO). It has 2 12V DC split power outputs with total power of 5 A (3+2 A). An empty space will accept a battery up to 18 Ah.
The product also includes a sensor to open the unit which can be connected to the central control panel or to the extension module.
The unit also has a 1 cm space to facilitate cable management at the rear.
A cut out in the door allows to directly monitor the power status (mains, battery, charge).
The door can be removed to facilitate cable installation.
| Output voltage (V) | 13.8vdc |
|---|---|
| Integrated Power Supply | 5 A Power Supply |
| Integrated power supply | |
| Battery slot | Yes up to 18 ah 12vdc |
| Lock | Cam lock and key |
| Locking mechanism | |
| Nominal value output voltage 1 | 12 V |
| Output voltage stabilized | Yes |
| Power output | 60 W |
| Modular version | No |
| IP protection | IP20 |
