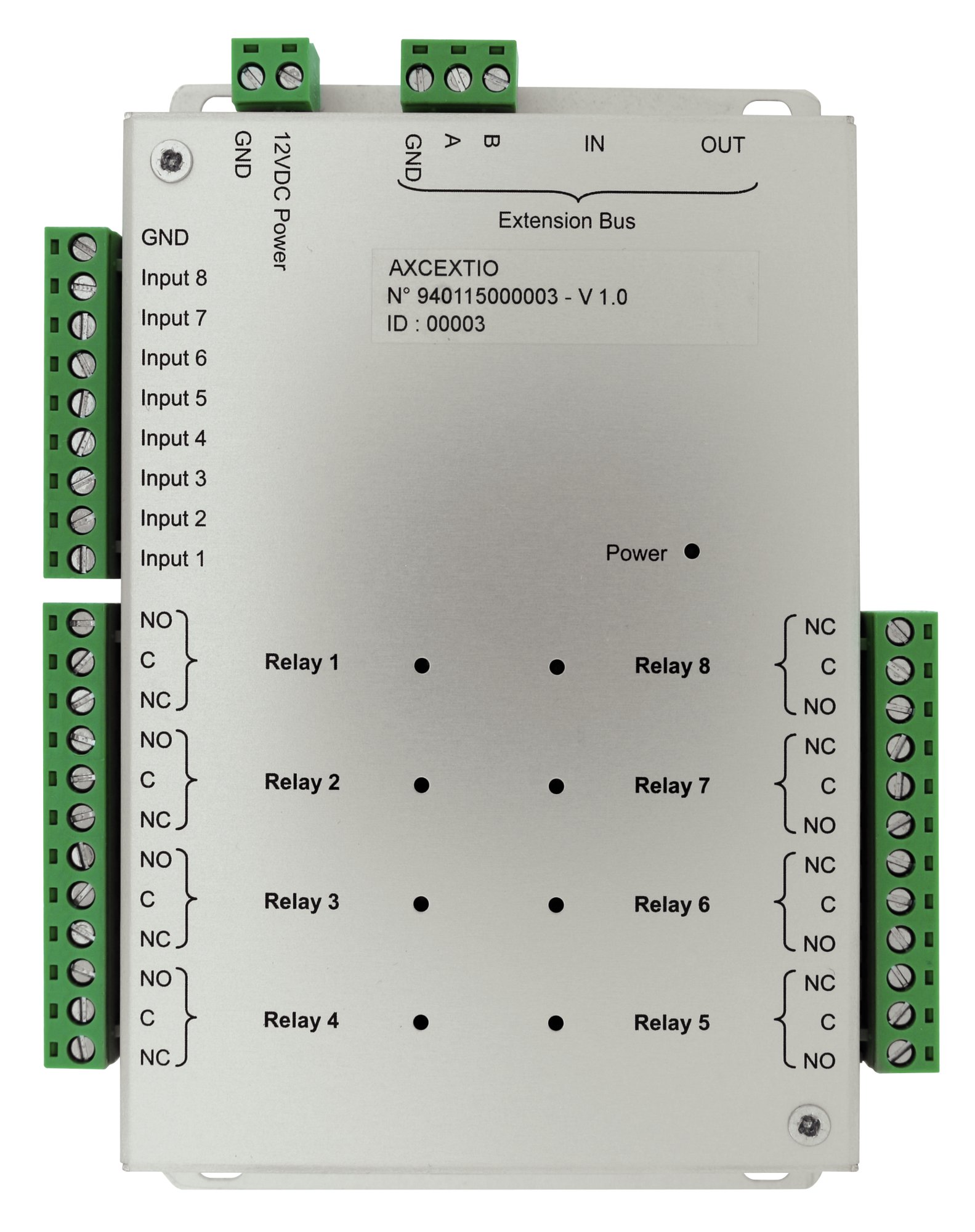

GGM AXCEXTIO

EXTENSION 8 IO PR AXC2IP

The GGM AXCEXTIO allows 8 inputs / 8 outputs to be added to the installation allowing you to operate programmable controllers depending on events signalled by the access control software. A RS485 is used for connection to the controller and may also be connected to an AXC4DEXTEVO It is possible to connect up to 10 AXCEXTIO per controller.

Connection to the controller	Rs 485 2 wires
Relay outputs (integrated LEDs independent	8
Two or four state inputs	8
Standalone	No
Networkable	Yes
PC-binding	No
Max. number of doors	8
Type of interface	Bus system
Max. number of persons	15000
Reading strategy	Other
Signalling	Other
Mounting method	Surface mounted
Operating voltage DC	09 - 14
Operating temperature	-20 - 50
IP protection	IP20
Width	108 mm
Height	157 mm
Depth	30 mm
