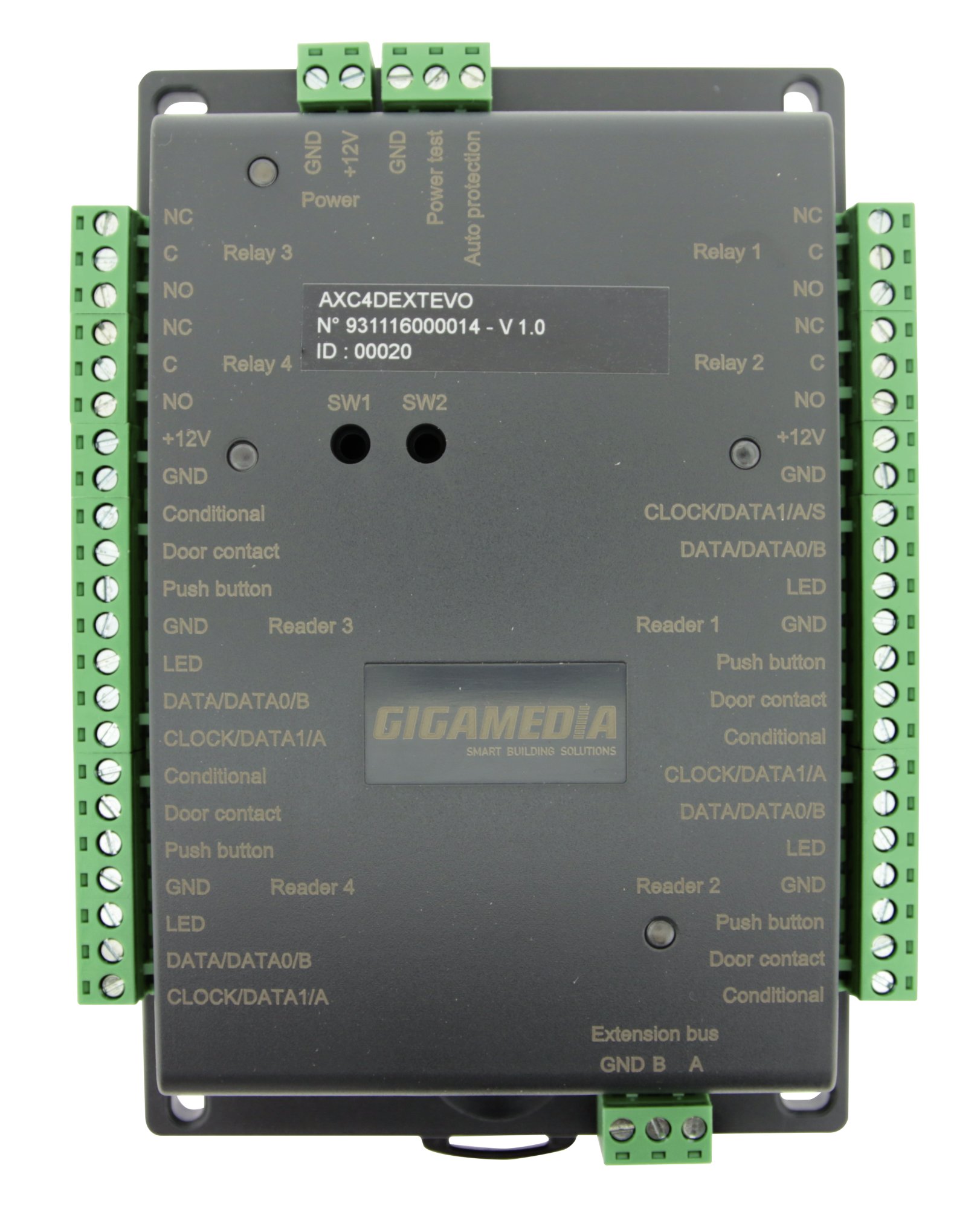

GGM AXC4DEXTEVO
4 DOOR EXTENSION FOR AXC2IPEVO
The AXC4DEXT extension module allows 4 additional readers to be added to the AXC2DIPEVP controller It is possible to connect up to 10 extension modules per controller. The connections to the central control and other extension modules is via the 1 pair RS485. The maximum bus distance is 750 m.
Read more
The AXC4DEXT extension module allows 4 additional readers to be added to the AXC2DIPEVP controller It is possible to connect up to 10 extension modules per controller. The connections to the central control and other extension modules is via the 1 pair RS485. The maximum bus distance is 750 m.
| Fixing | Din rail Or SCrewing |
|---|---|
| Power supply | 12 vdc |
| Supported reader protocols | Wiegand/clockand dATa/rs485 |
| Conditional entry | Yes |
| Power Consumption | 300 mA |
| Housing materials | Abs plastic |
| Operation in degraded mode (4 modes) | Yes |
| Type of product | 4-door expansion module |
| Standalone | No |
| Networkable | Yes |
| PC-binding | Yes |
| Type of interface | Ethernet |
| Mounting method | Other |
| IP protection | IP20 |
| Material | Plastic |
| Width | 119 mm |
| Height | 170 mm |
| Depth | 40 mm |
