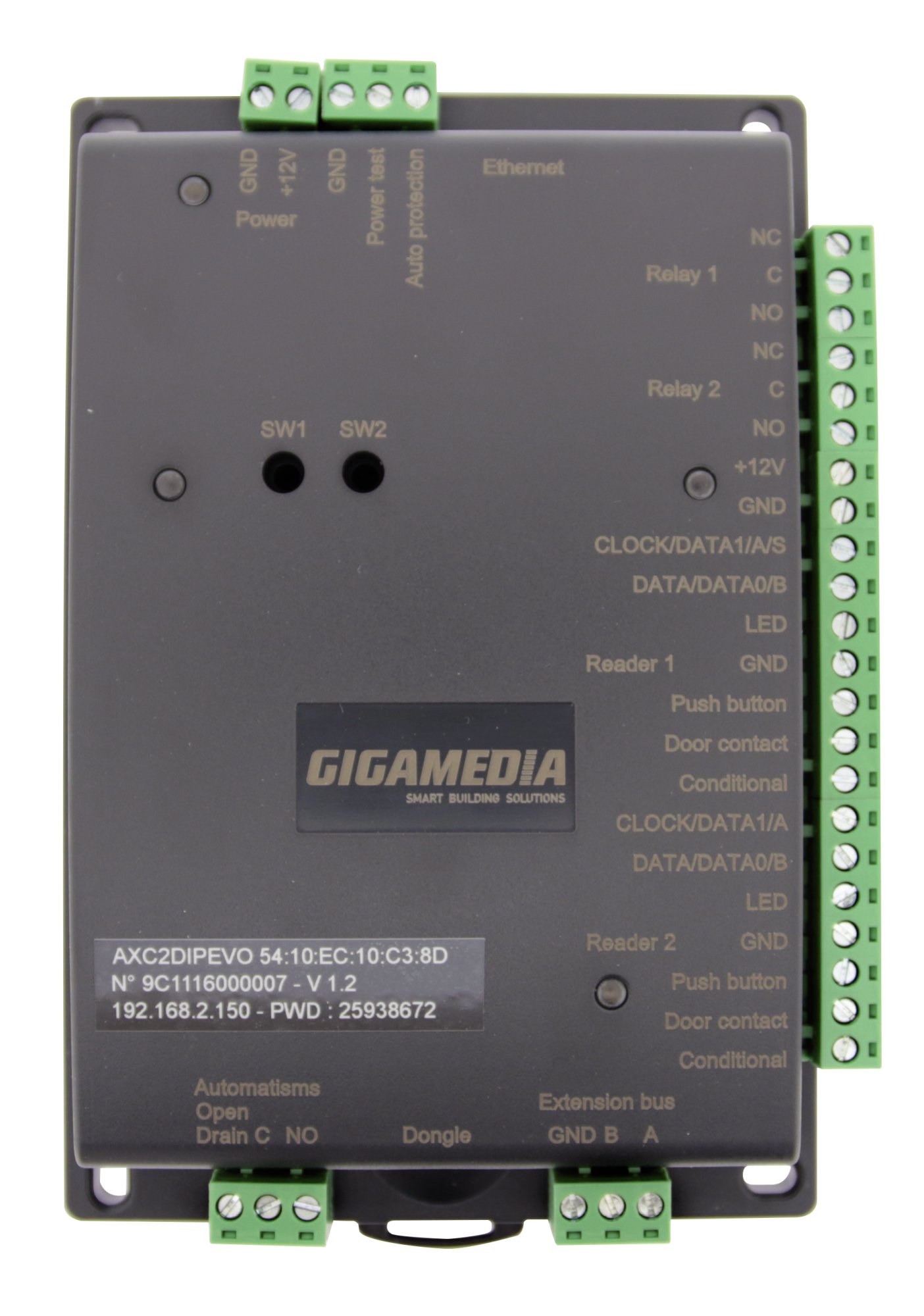

GGM AXC2DIPEVO

CENTRAL CONT ACCES IP 2 READ

The GGM AXC range is a centralised IP access control solution allowing the development of projects from 1 to 840 readers. The GGM AXC2DIPEVO is an IP controller. This is the starting point for a centralised installation. It is able to manage 2 doors via the GGM ACS (Gigamedia Access Control Software) and has a dual-processor for rapid information treatment. Its insulated optical bus is able to accept most existing access control cables. It can mange up to 50,000 users and store 15,000 events. A global installation can include up to 254 controllers. The extension is done using the 4…

Automation relay, automation scenarios	Yes
Fixing	Din rail Or SCrewing
Max number of events	15000
Maximum number of users	50000
Power supply	12 vdc
Supported reader protocols	Wiegand/clockand dATa/rs485
Terminal block	Up to 3 mm withdrawable section
Controller type	Central on ip (fixed ip /dhcp)
Housing materials
Online/offline function
Type of product
Airlock function management	Yes
Anti-passback management	Yes
Conditional entry	Yes
Power Consumption	300 mA
Number of reader inputs (reader input, exit button, door contact, no nf com relay)	2
Transit time management	Yes
Zone management	Yes
Standalone	No
Networkable	Yes
PC-binding	Yes
Type of interface	Ethernet
Max. number of persons	50000
Reading strategy	Other
Mounting method	Other
IP protection	IP20
Material	Plastic
Width	116 mm
Height	170 mm
Depth	40 mm
