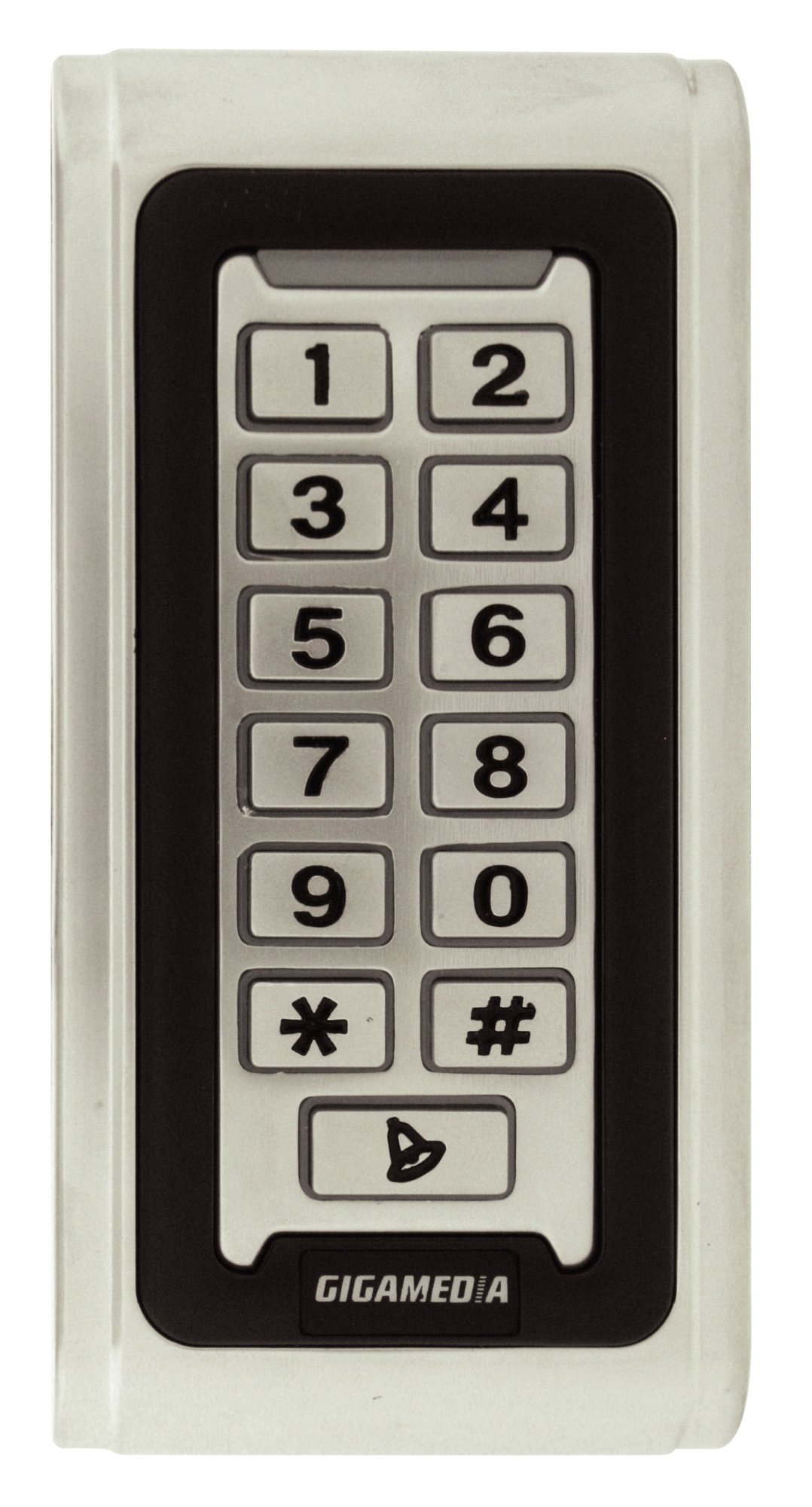

GGM AXA1MFK2KW

AUTO CENTRAL 1R CLAV+MF IP68

The GGM AXA1 series is a series of central autonomous control panels to secure a door with card and/or code authentication and can manage up to 2,000 users. The options available with the range allow a solution to be found for varied environments with the RFID format in EM 125 kHz or Mifare 13.56 MHz The AXA1MFK2KW central control panel allows an inside door to be secured with RFID Mifare 13.56MHz authentication and a coded keypad. The resin protection of the electronic card renders the product conform to IP68 and its anti-vandal resistance allows its use in difficult environments. Its…

Number of relays
Authentication type
Authentification	Card and/or code
Card type	Mifare (13.56 MHz)
Maximum number of users	2000
Authentication method	Mifare keypad + rfid
IP Protection
Supply voltage
Operating environment	Outdoor
Impact resistance	Vandal proof
Anti-tamper device	Yes
Wiegand output (bit)	26
Standalone	Yes
Networkable	Yes
PC-binding	No
Max. number of doors	1
Type of interface	None
Max. number of persons	2000
Reading strategy	Code
Mounting method	Surface mounted
Operating voltage DC	12 - 12
Operating temperature	-45 - 60
IP protection	IP20
Width	56 mm
Height	120 mm
Depth	18 mm
