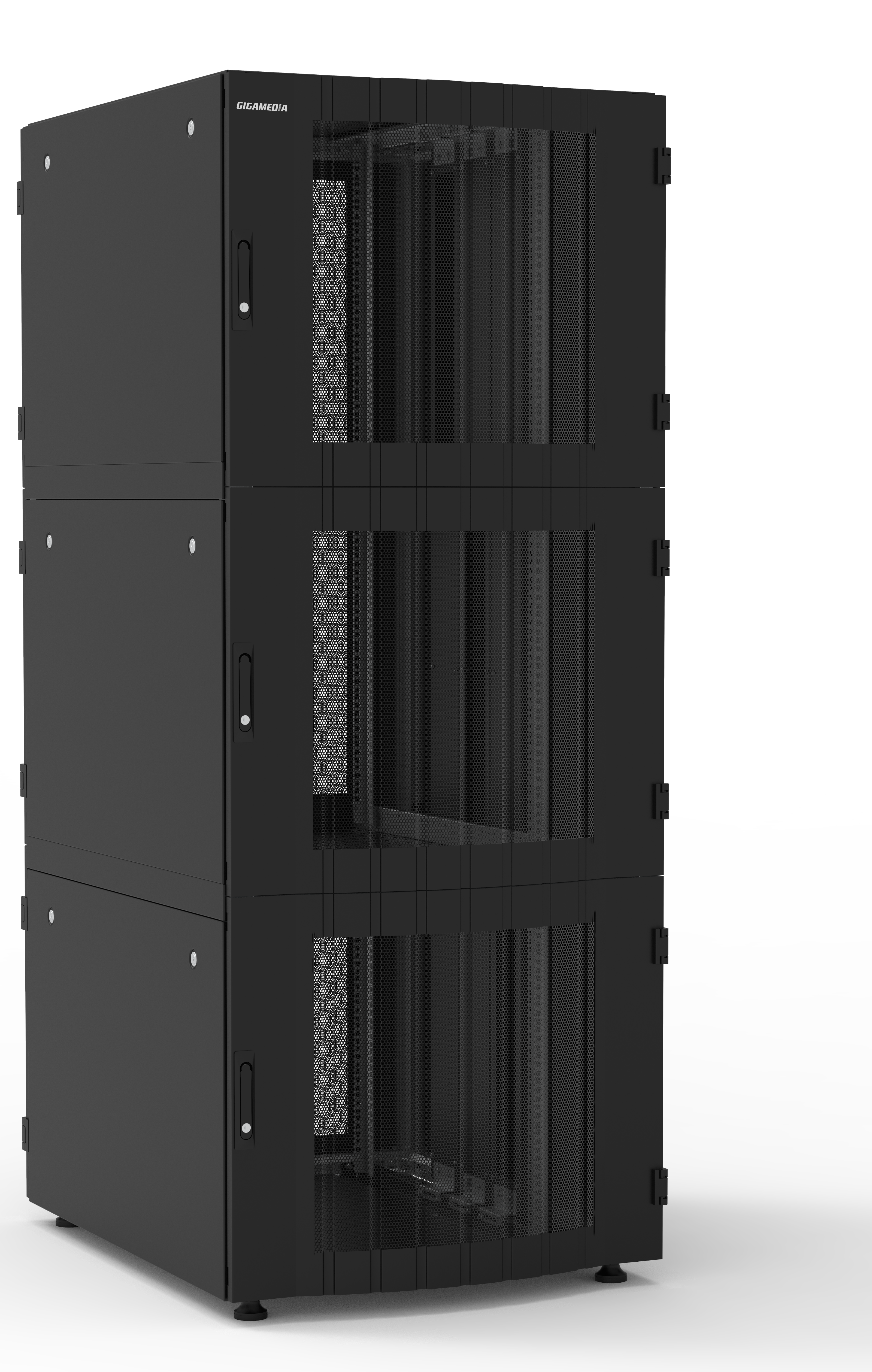

S250 COLO 3C 3x13U 800X1000 SFD SRD

Type	Colocation server (2, 3 or 4 compartments depending on the version)
Frame	Aluminum, mechanically screwed (To be disassembled)
Mounting profiles	Four 19″ mounting profiles adjustable in depth (zinc plated), independents by compartment, “U” markings, 9.5 x 9.5 mm perforations
Front door	Reversible perforated door, can be opened up to 190°, locked by using swing handle with key lock
Rear door	Reversible perforated door, can be opened up to 190°, locked by using swing handle with key lock
Side panels	2 x Removable panels per compartment, designed for quick installation and be removable from the outside, locked by using key locks
Roof	Full, with sides pre-cut for cables entry
Base	Full, with sides pre-cut for cables entry
Separation plate(s)	Inter-compartments in perforated sheet metal
Routing ducts	Sides cables trunking to manage the cables inside the cabinet (serving the compartments independently)
Key set	Different per compartment
Ground contact	Adjustable feet (over 4 cm)
Useful height (mm)	2020
Width (mm)	800
Depth (mm)	1000
RAL	9005
Protection (IP)	0
Load capacity	1500
Earthing kit included	Yes
Capacity	3 x 13 U
Mounting level	Front and rear
Type of profile rail	L-shaped
Number of doors	2
Type of ventilation	Passive
Width	800 mm
Height	2033 mm
Depth	1000 mm
Modular spacing	482.6 mm (19 inch)
Height (U)	42
Max. load capacity	1500 kg
With roof plate	Yes
With earthing	Yes
With front door	Yes
Material front door	Steel
Front door locking system	One point
With rear door	Yes
Material rear door	Steel
Rear door locking system	One point
With glazed door	No
With sidewall	Yes
With base	No
With vertical cable management	No
Material	Steel
Surface finishing	Powder coating
Colour	Black
Model	With permanent frame
Demountable	Yes
IP protection	IP00
