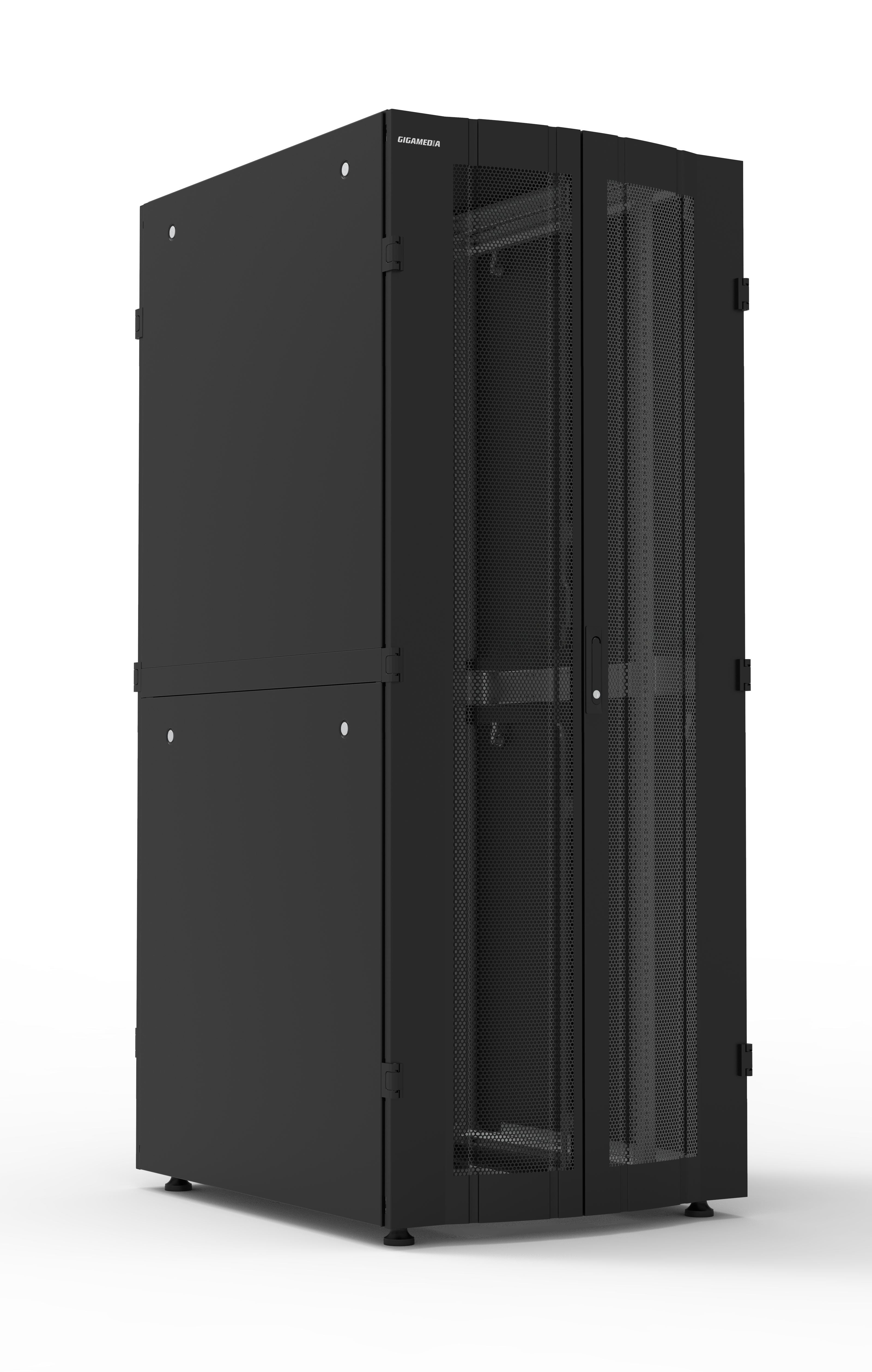

GGM ALS42810C

S250 42U 800X1000 DFD DRD

The rigidity and the load capacity of the aluminium frame, the high level of equipment, the finish, the aesthetics ... In brief, a real added value product ! The screwed assembly of the frame allows a complete dismantling of the cabinet, very practical in case of difficult access. To dissipate the heat it produces, a server needs a supply of fresh air on the frontl. The heated air will then be exhausted through the back of the server. To support this cooling process, it is therefore essential that the cabinet be equipped with perforated front and rear doors to allow…

The rigidity and the load capacity of the aluminium frame, the high level of equipment, the finish, the aesthetics ... In brief, a real added value product !
The screwed assembly of the frame allows a complete dismantling of the cabinet, very practical in case of difficult access.

To dissipate the heat it produces, a server needs a supply of fresh air on the frontl. The heated air will then be exhausted through the back of the server.
To support this cooling process, it is therefore essential that the cabinet be equipped with perforated front and rear doors to allow the circulation of air flows and thus avoid the risk of overheating.

Type	Server
Frame	Aluminum, mechanically screwed (To be disassembled)
Mounting profiles	4 mounting profiles 19″ adjustable in depth (zinc-plated steel), identification of ″u″, perforations of 9.5 x 9.5 mm)
Side panels	Two removable half panels (more ease in assembly/disassembly operations) from the outside, locked by using 2 latches and key lock (N° 333)
Base	Open, bottom plate available as an option
Ground contact	Adjustable feet (over 4 cm)
RAL	9005
Protection (IP)	0
Load capacity	1500
Earthing kit included	No
Rear door	Double perforated door, can be opened up to 190°, locked by using multipoint swing handle with key lock (N°333)
Capacity (U)	42
Depth (mm)	1000
Front door	Double perforated door, can be opened up to 190°, locked by using multipoint swing handle with key lock (N°333)
Height (mm)	2020
Width (mm)	800
Roof	Full, with rear and sides pre-cut for cables entry
Mounting level	Front and rear
Type of profile rail	L-shaped
Number of doors	2
Type of ventilation	Passive
Width	800 mm
Height	2033 mm
Depth	1000 mm
Modular spacing	482.6 mm (19 inch)
Height (U)	42
Max. load capacity	1500 kg
With roof plate	Yes
With earthing	No
With front door	Yes
Material front door	Steel
Front door locking system	Three-point
With rear door	Yes
Material rear door	Steel
Rear door locking system	Three-point
With glazed door	No
With sidewall	Yes
With base	No
With vertical cable management	No
Material	Steel
Surface finishing	Powder coating
Colour	Black
Model	With permanent frame
Demountable	Yes
IP protection	IP00
