| Supply voltage | 230 V |
|---|---|
| Frequency (Hz) | 50 |
| Air flow | 648 |
| Noise level | 54 db (outside when the cabinet is closed) |
| Number of fans | 4 |
| Thermostat | Yes |
| Power supply | By power cord HO5VVF 2 meters - 3 x 1,5 mm² with molded Schuko plug 16 A - 250 V |
| Fixing | On the top of the floor standing cabinet replacing the pre-cut plate |
| Compatibility | Cabling floor standing cabinets GIGARACK Type 250 |
| RAL | 7035 |
| Operating voltage AC 50 Hz | 230 - 230 |
| Operating voltage AC 60 Hz | 230 - 230 |
| Voltage type | AC |
| Suitable for wall built-in | No |
| Built as slide-in ventilator | No |
| Air circulator | No |
| Roof ventilator | Yes |
| With filter | No |
| With protective cover | Yes |
| Volume flow, freeblowing | 648 m³/h |
| Rated power | 60 W |
| EMC-version | No |
| Noise emission | 54 dB(A) |
| IP protection | Other |
| Mounting method | Screw mounting |
| Suitable for 19 inch rack mounting | No |
| Colour | Grey |
| Width | 361 mm |
| Height | 50 mm |
| Depth | 373 mm |
Product information
For further information
Over 7000
part numbers
Exclusively distributed
by Rexel
Over 100 employees
worldwide
30 years of expertise
at your service
Tailor-made services
for your projects

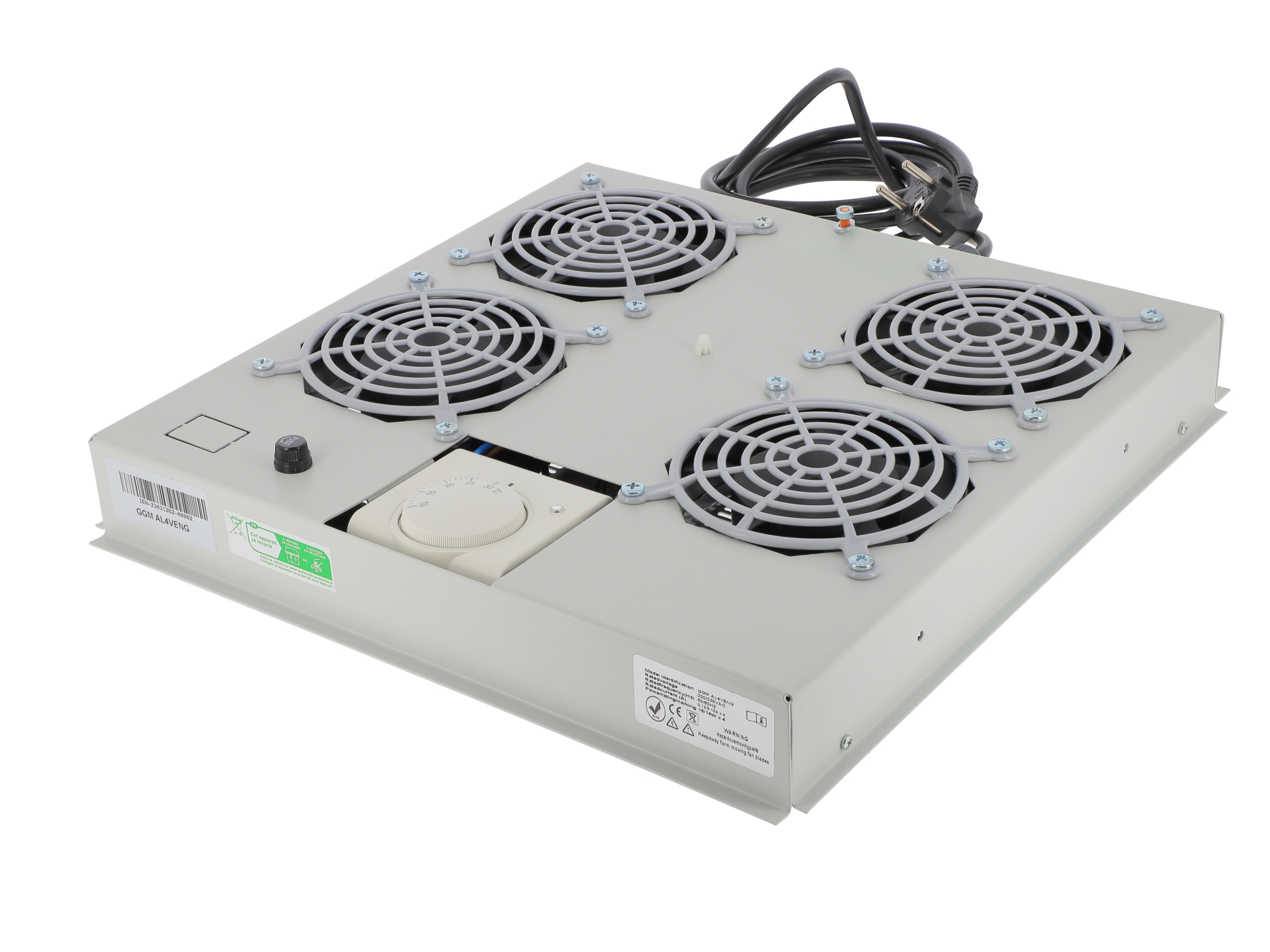

GGM AL4VENG
4 FAN ROOF VENT panel GREY
