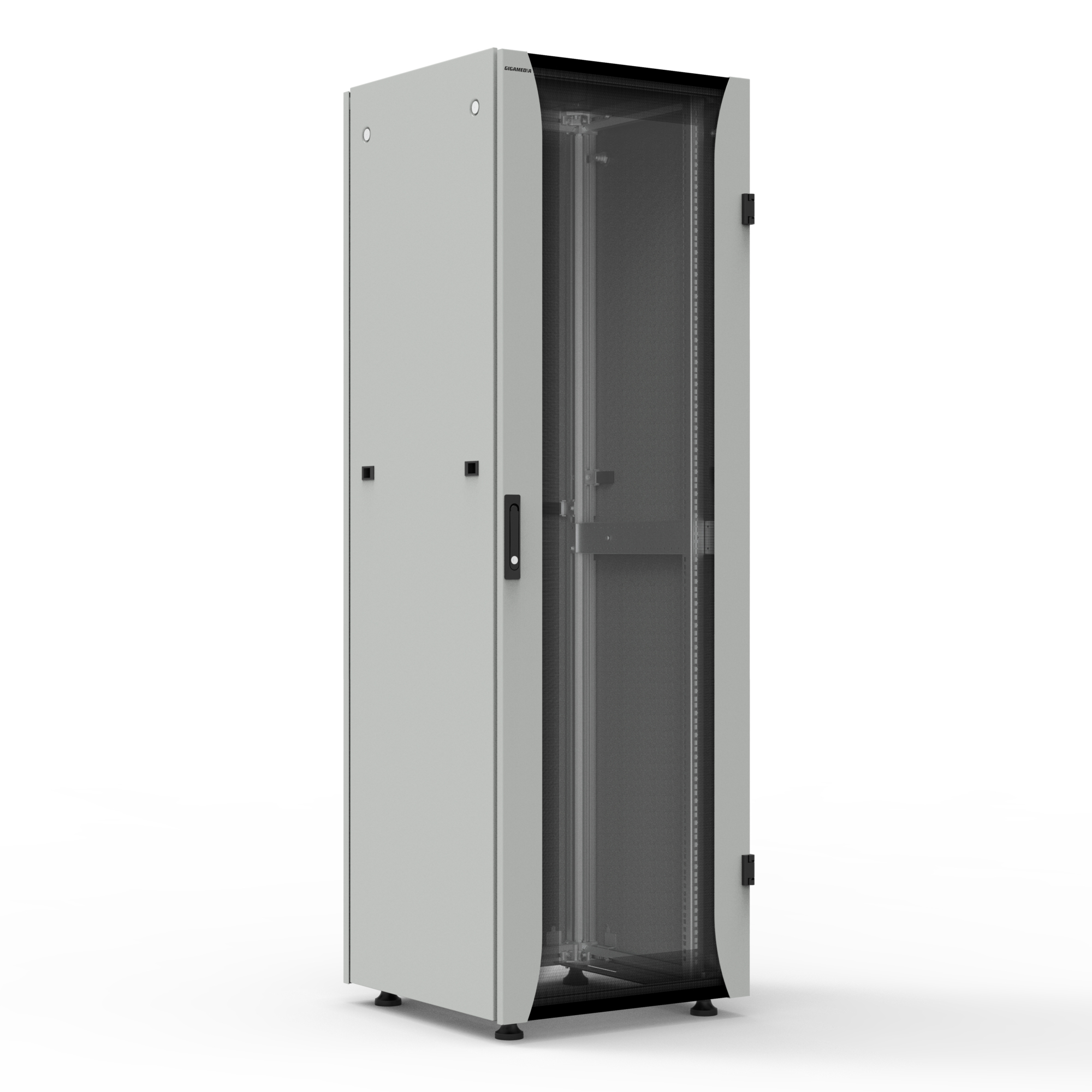

GGM AL3966G

RACK S250 39U 600X600 GREY

The rigidity and the load capacity of the aluminium frame, the high level of equipment, the finish, the aesthetics ... In brief, a real added value product ! The screwed assembly of the frame allows a complete dismantling of the cabinet, very practical in case of difficult access.

The rigidity and the load capacity of the aluminium frame, the high level of equipment, the finish, the aesthetics ... In brief, a real added value product !
The screwed assembly of the frame allows a complete dismantling of the cabinet, very practical in case of difficult access.

Type	Cabling
Frame	Aluminum, mechanically screwed (To be disassembled)
Mounting profiles	Two 19″ mounting profiles adjustable in depth (zinc plated), “U” markings, 9.5 x 9.5 mm perforations
Front door	Reversible securit glass door with side profiles, can be opened up to 190°, locked by using swing handle with key lock (N°333)
Rear panel	Removable, designed for quick installation and be removable from the outside, locked by using 2 latches and key lock (N° 333)
Side panels	Removable, designed for quick installation and be removable from the outside, locked by using 2 latches and key lock (N° 333)
Ground contact	Adjustable feet (over 4 cm)
Protection (IP)	20
Load capacity	1500
Earthing kit included	No
Capacity (U)	39
Depth (mm)	600
Height (mm)	1880
Width (mm)	600
RAL	7035
Roof	Full, with rear pre-cut for cables entry
Mounting level	Front side
Type of profile rail	L-shaped
Number of doors	1
Type of ventilation	Passive
Width	600 mm
Height	1900 mm
Depth	600 mm
Modular spacing	482.6 mm (19 inch)
Height (U)	39
Max. load capacity	1500 kg
With roof plate	Yes
With earthing	No
With front door	Yes
Material front door	Glass
Front door locking system	One point
With rear door	No
With glazed door	No
With sidewall	Yes
With base	No
With vertical cable management	No
Material	Steel
Surface finishing	Powder coating
Colour	Grey
Model	With permanent frame
Demountable	Yes
IP protection	IP20
