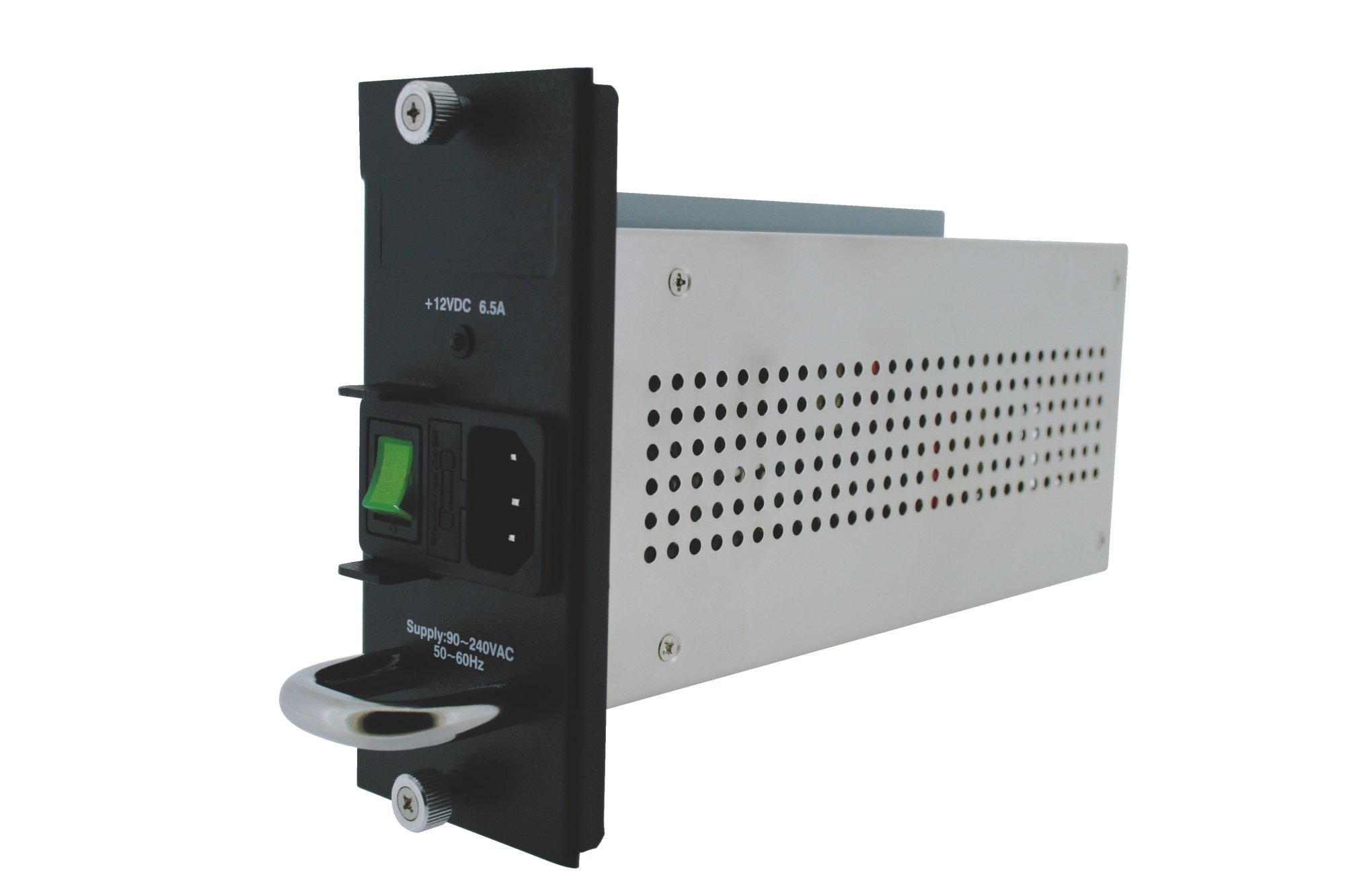

GGM 75R

Redundant Power Supply for GGM 719

Included, input: 100~240VAC Delivered voltage: +12V The range of chassis for the GIGAMEDIA media converter allows 4 or 12 converters to be assembled in one chassis. These chassis are mountable in 19″ racks Media converters that are hot-swappable without disconnecting the power supply. Compatibility: GGM 741 - GGM 742 - GGM 705- GGM 629 - GGM 633 Complies with standards: FCC part 15 of class A, CE - Weight empty GGM 719: 9kG, - Please contact us for GGM 719 details Product plus: - 19″ rack mounted - Plug and Play - 4 available places Interface: 4 free places Technical…

Compatible chassis	GGM 719
Hot-pluggable	No
Operating temperature range	From 0 to 50°C
Storage Temperature (°C)	From -20° - to 85°C
Voltage type (supply voltage)	AC/DC
1st secondary output voltage	12 - 12
Max. output current 1	6.25 A
Secondary voltage adjustable	No
Nominal value output voltage 1	12 V
Nominal value output current 1	6.25 A
Short-circuit-proof	Yes
Rated supply voltage AC 50 Hz	100 - 240
Rated supply voltage AC 60 Hz	100 - 240
Rated supply voltage DC	100 - 240
Output voltage stabilized	No
Power output	75 W
Stabilized	Yes
Type of electric connection	Plug-in connection
Rail mounting possible	No
Wall mounting possible	No
Modular version	No
Direct mounting possible	No
Suitable for safety functions	No
SIL according to IEC 61508	None
Performance level according to EN ISO 13849-1	None
IP protection	Other
Degree of protection (NEMA)	Other
