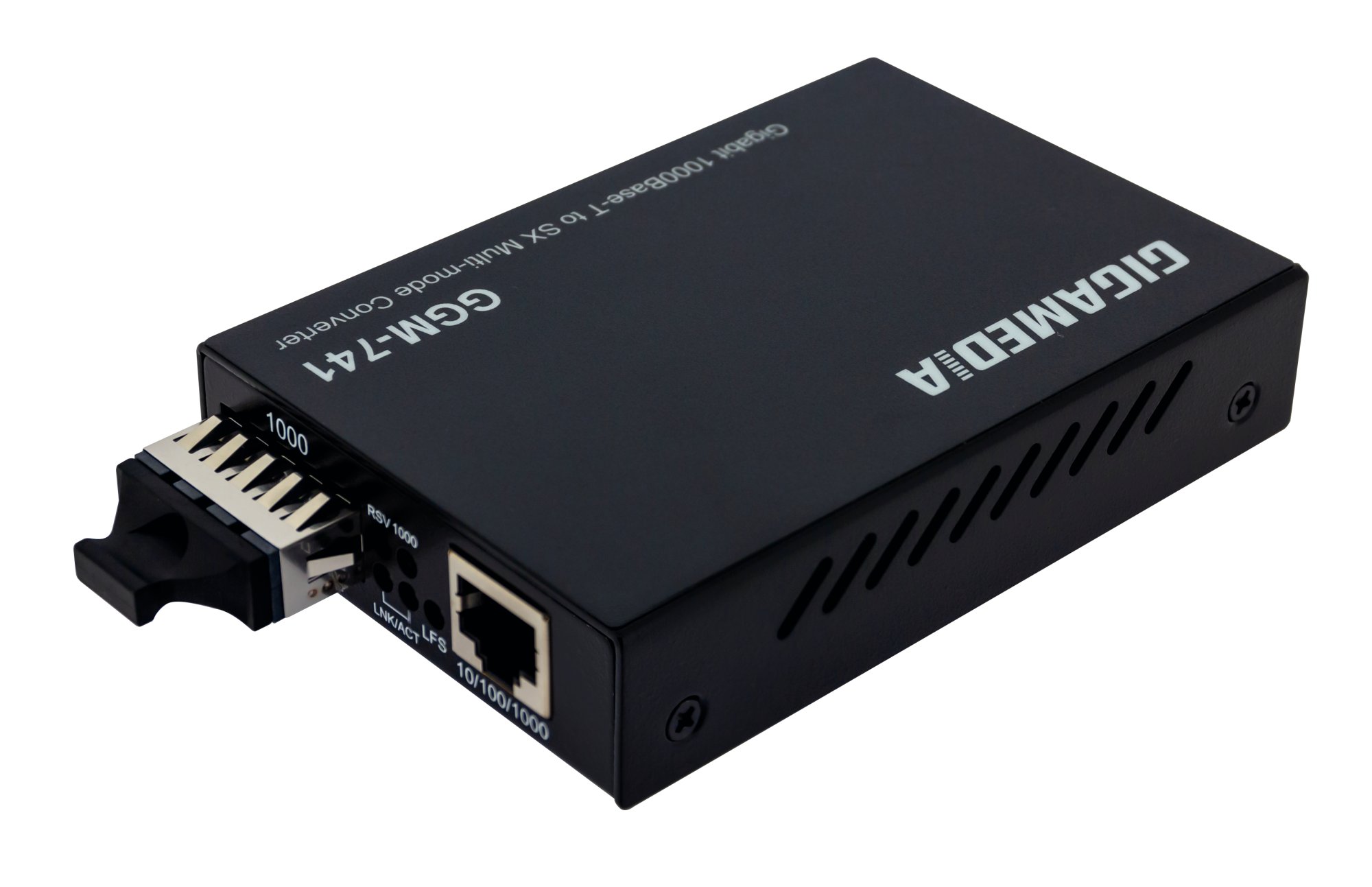

GGM 741MC
Media Converter 1000TX vs 1000SX MM SC
Media converters allow two types of cable to be connected. They are frequently used when extending a network over a long distance via the fibre optic (multimode or monomode), or to connect 2 separate networks more than 100 m apart. The GGM 742MCV2 is a multimode converter from 10/100 Mbps copper towards 100 Mbps SC fibre optic cable.
Read more
Media converters allow two types of cable to be connected. They are frequently used when extending a network over a long distance via the fibre optic (multimode or monomode), or to connect 2 separate networks more than 100 m apart.
The GGM 742MCV2 is a multimode converter from 10/100 Mbps copper towards 100 Mbps SC fibre optic cable.
| Copper distance (m) | 100 |
|---|---|
| Fiber distance (m) | 220 |
| Mdi/mdix auto-negotiation | Yes |
| Switching mode | Store-and-forward |
| Current supply (A) | 0.8 |
| Operating temperature range | From 0 to 50°C |
| Storage Temperature (°C) | From -20° - to 80°C |
| Ethernet | No |
| Fast Ethernet | No |
| Gigabit Ethernet | Yes |
| Power over Ethernet | No |
| Number of ports 1000 Mbps RJ45 | 1 |
| Number of ports 1000 Mbps SC (SX) | 1 |
| Voltage type (supply voltage) | DC |
| Supply voltage DC | 00 - 12 |
| 19 inches mounting | No |
| Wall mounting/direct mounting | No |
| Rail mounting possible | Yes |
| Managed | No |
| Format | Single device |
| Height | 23.4 mm |
| Width | 109.2 mm |
| Depth | 73.8 mm |
