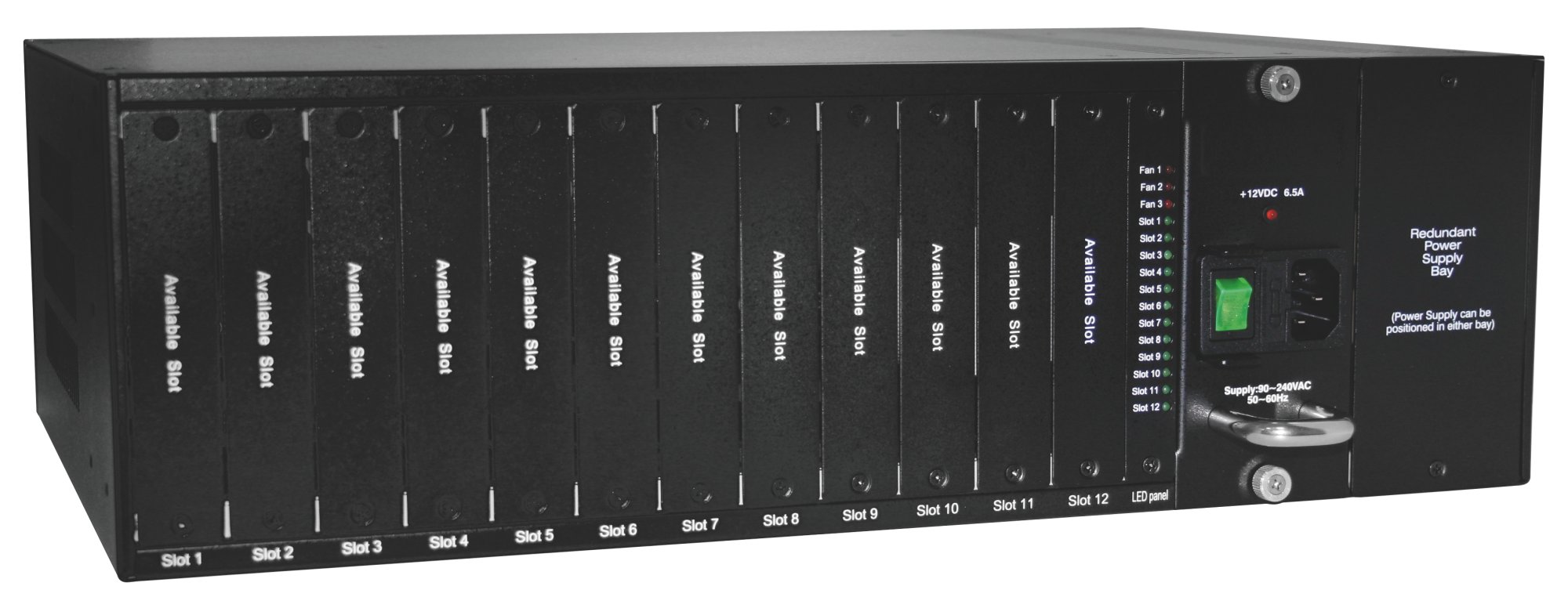

GGM 719
12-slot Media Converters 19″ Rackmount Chassis
The GGM 719 media converter is a 19″ empty rack mount chassis able to accept up to 12 media converters. To fit the converters into the chassis, the metal cover of each media converter must be removed. Compatible with the following converters: GGM 742MT GGM 742SC20 GGM 741MC GGM 741SC GGM 741SC40
Read more
The GGM 719 media converter is a 19″ empty rack mount chassis able to accept up to 12 media converters. To fit the converters into the chassis, the metal cover of each media converter must be removed. Compatible with the following converters: GGM 742MT
GGM 742SC20
GGM 741MC
GGM 741SC
GGM 741SC40
| Compatibility with Media converters | GGM 742MT - GGM 742SC20 - GGM 741MC - GGM 741SC |
|---|---|
| Hot pluggable converter | Yes |
| Number of power supplies | 1 |
| Output current | 1 |
| Output voltage (V) | 12 |
| Output voltage type | DC |
| Storage Temperature (°C) | From -20° - to 85°C |
| Operating temperature range | From 0 to 50°C |
| Ethernet | No |
| Fast Ethernet | No |
| Gigabit Ethernet | No |
| Power over Ethernet | No |
| Voltage type (supply voltage) | DC |
| Supply voltage AC 50 Hz | 100 - 240 |
| Supply voltage AC 60 Hz | 100 - 240 |
| Supply voltage DC | 00 - 00 |
| 19 inches mounting | Yes |
| Wall mounting/direct mounting | No |
| Rail mounting possible | No |
| Managed | No |
| Format | Empty chassis |
| Height | 133 mm |
| Width | 430 mm |
| Depth | 290 mm |
